Description

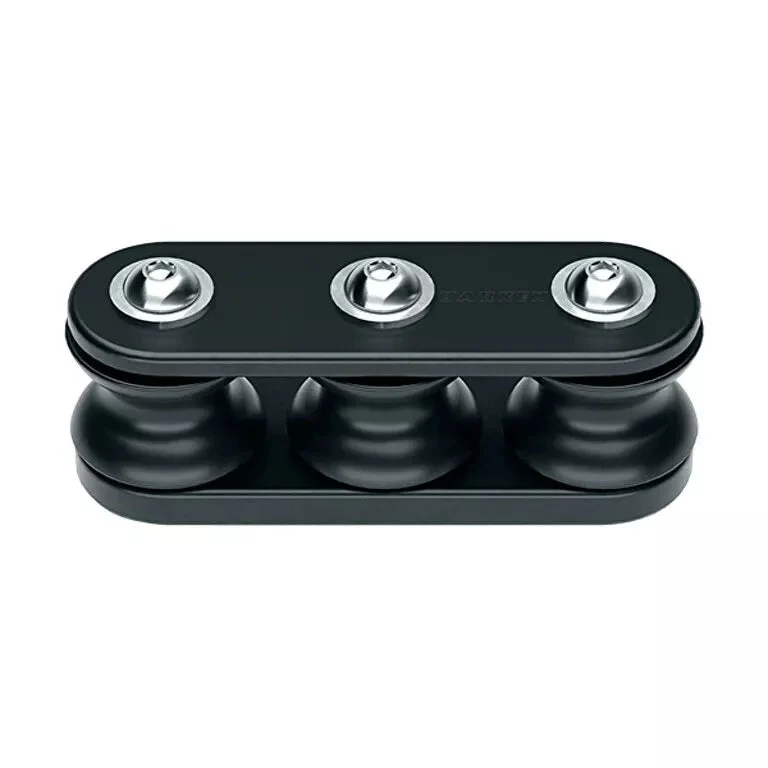

Harken 3-Sheave Deck Organizer
These line organizers are designed to be installed between a row of clutches terminating hayards and control lines, and corresponding winches. The orgainzer allows fewer winches to service increasingly busy pit areas. The tulip sheaves keep even very acute leads fair and reduce friction in the process.
Technical Description
| Sheave Ø (mm) | 33 mm |
| Sheave Ø (in) | 1 1/3 in |
| Length (mm) | 105 mm |
| Length (in) | 4 1/8 in |
| Height (mm) | 38 mm |
| Height (in) | 1 1/12 in |
| Weight (g) | 220 g |
| Weight (oz) | 7.8 oz |
| Maximum line Ø (mm) | 12 mm |
| Maximum line Ø (in) | 1/2 in |
| Fasteners (mm) | 8 mm |
| Fasteners (in) | 5/16 in |
| Maximum working load (kg) | 1020 kg |
| Maximum working load (lb) | 2250 lb |
| Breaking load (lb) | 4500 lb |
| Breaking load (kg) | 2041 kg |
