Description

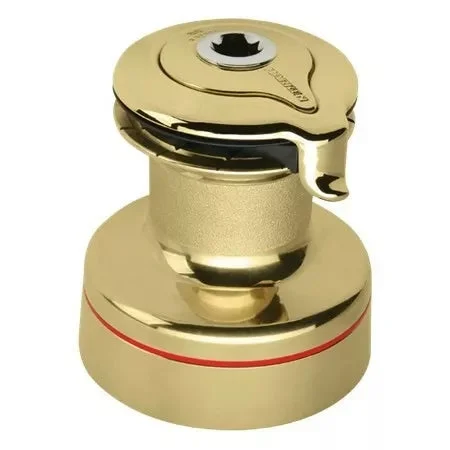

Harken 40 Self-Tailing Radial Bronze Winch – 2 Speed
Harken Radial Line winches have successfully balanced the need for a secure grip and line longevity with smooth, controlled easing while under load. Details sailors will appreciate: smaller winches that carry higher loads, stress-free seasonal maintenance, and one-person installation. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.
Technical Description
| Weight (kg) | 6.2 kg |
| Weight (lb) | 13.7 lb |
| Maximum line Ø (mm) | 12 mm |
| Maximum line Ø (in) | 1/2 in |
| Fasteners (mm) | M6 SH mm |
| Fasteners (in) | 1/4 SH in |
| Fastener circle (mm) | 123 mm |
| Fastener circle (in) | 4 7/8 in |
| Height (mm) | 175 mm |
| Height (in) | 6 7/8 in |
| Number of fasteners | 5 |
| Material | Bronze |
| Configuration | Self-tailing |
| Speed | 2 |
| Drum Ø (mm) | 80 mm |
| Drum Ø (in) | 3 1/8 in |
| Base Ø (mm) | 157 mm |
| Base Ø (in) | 6 3/16 in |
| Line entry height (mm) | 82 mm |
| Line entry height (in) | 3 1/4 in |
| Minimum line Ø (mm) | 8 mm |
| Minimum line Ø (in) | 5/16 in |
| Gear ratio – 1 | 2.13 |
| Gear ratio – 2 | 6.28 |
| Power ratio – 1 | 13.50 |
| Power ratio – 2 | 39.90 |
| Available power | Manual |
