Description

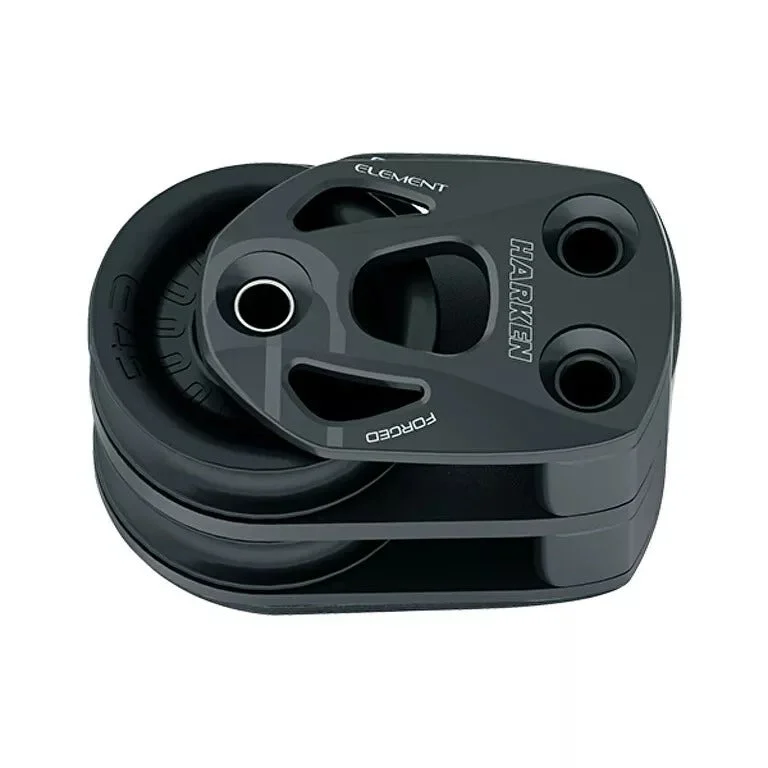

Harken 45mm Element Double Foot Block
Element blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks. Sideplates are hardcoat-anodized to resist corrosion. Bearing sheave of tough composite resists corrosion for a long service life.
Technical Description
| Sheave Ø (mm) | 45 mm |
| Sheave Ø (in) | 1 3/4 in |
| Length (mm) | 76 mm |
| Length (in) | 3 in |
| Weight (g) | 160 g |
| Weight (oz) | 5.6 oz |
| Maximum line Ø (mm) | 12 mm |
| Maximum line Ø (in) | 1/2 in |
| Fasteners (mm) | 6 mm |
| Maximum working load (kg) | 466 kg |
| Maximum working load (lb) | 1018 lb |
| Breaking load (kg) | 933 kg |
| Breaking load (lb) | 2036 lb |
| A (mm) | 11 mm |
| A (in) | 7/16 in |
| B (mm) | 41.5 mm |
| B (in) | 1 5/8 in |
| C (mm) | 45 mm |
| C (in) | 1 3/4 in |
| Height (mm) | 45 mm |
| Height (in) | 1 3/4 in |
| D (mm) | 9.5 mm |
| D (in) | 3/8 in |
