Description

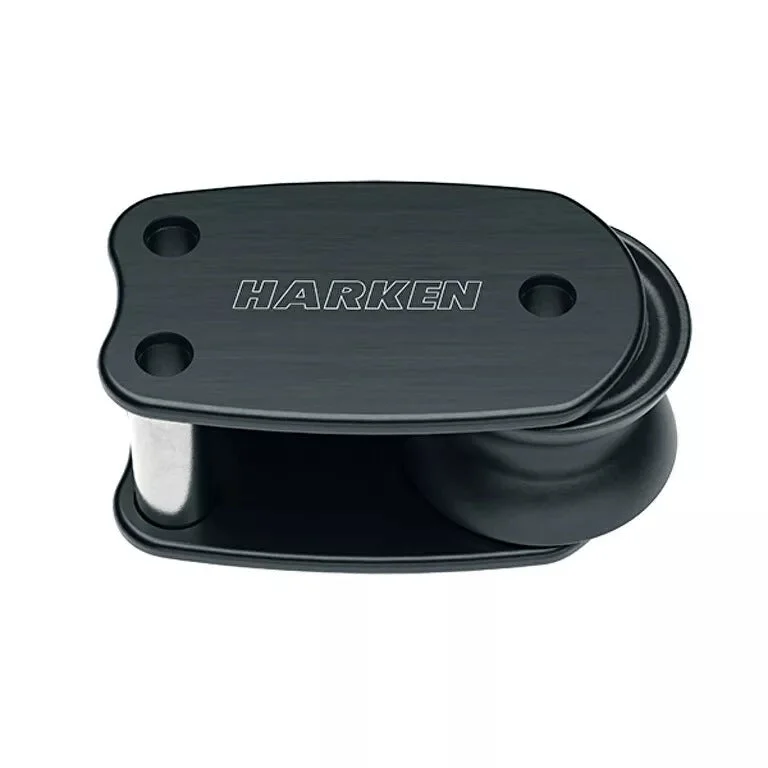

Harken 45mm Tulip Footblock
Footblocks are, by definition, fixed to the deck. Our new tulip sheave design helps realign lead angle in situations where the lead is not perfectly aligned with the block – situations where off-center loading would cause significant additional friction with a narrower conventional sheave
Technical Description
| Sheave Ø (mm) | 45 mm |
| Sheave Ø (in) | 1 3/4 in |
| Length (mm) | 91 mm |
| Length (in) | 3 9/16 in |
| Width (mm) | 50 mm |
| Width (in) | 2 in |
| Height (mm) | 41 mm |
| Height (in) | 1 5/8 in |
| Weight (g) | 172 g |
| Weight (oz) | 5/16 oz |
| Maximum line Ø (mm) | 12 mm |
| Maximum line Ø (in) | 1/2 in |
| Number of fasteners | 3 |
| Fasteners (mm) | 8 mm |
| Fasteners (in) | 5/16 in |
| Maximum working load (kg) | 998 kg |
| Maximum working load (lb) | 2200 lb |
| Breaking load (lb) | 4400 lb |
| Breaking load (kg) | 1996 kg |
