Description

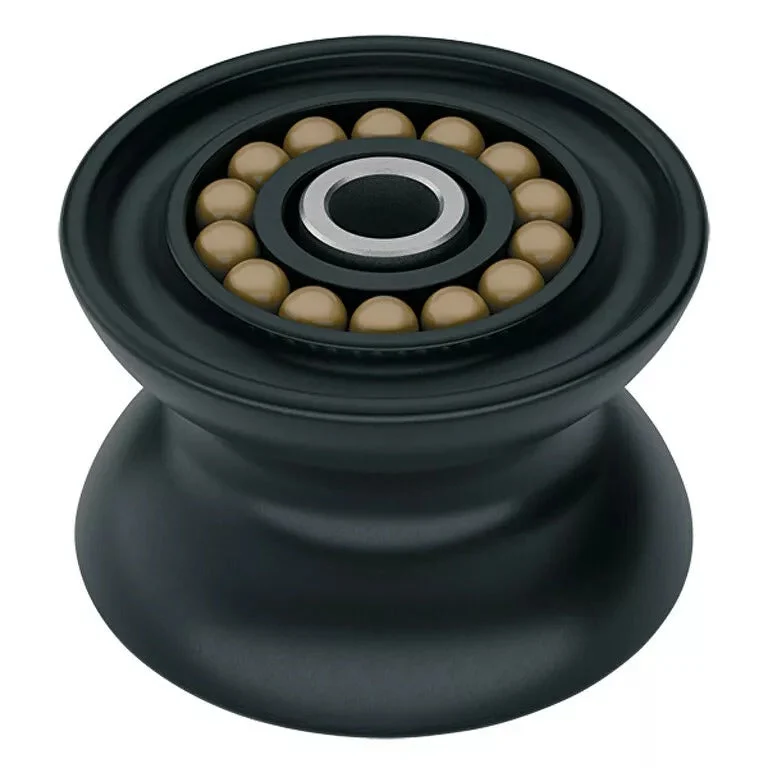

Harken 45mm Tulip Sheave
Tulip sheaves are ideal for applications where slight lead angle misalignments would otherwise lead to off-center loading and increased function. The line friendly wide design is also helpful where the lead angle changes as it does some outhaul systems. Aluminum sheave material with a pressed IGUS journal bearing, and Torlon ball bearings to support side loads
Technical Description
| Maximum line Ø (mm) | 12 mm |
| Maximum line Ø (in) | 1/2 in |
| Fasteners (mm) | 8 mm |
| Fasteners (in) | 5/16 in |
| Sheave Ø (mm) | 45 mm |
| Sheave Ø (in) | 1 3/4 in |
| Width (mm) | 32 mm |
| Width (in) | 1 1/4 in |
| Weight (g) | 83.5 g |
| Weight (oz) | 3 oz |
| Center pin Ø (mm) | 8 mm |
| Center pin Ø (in) | 5/16 in |
| Maximum working load (kg) | 998 kg |
| Maximum working load (lb) | 2200 lb |
| Breaking load (kg) | 1996 kg |
| Breaking load (lb) | 4400 lb |
