Description

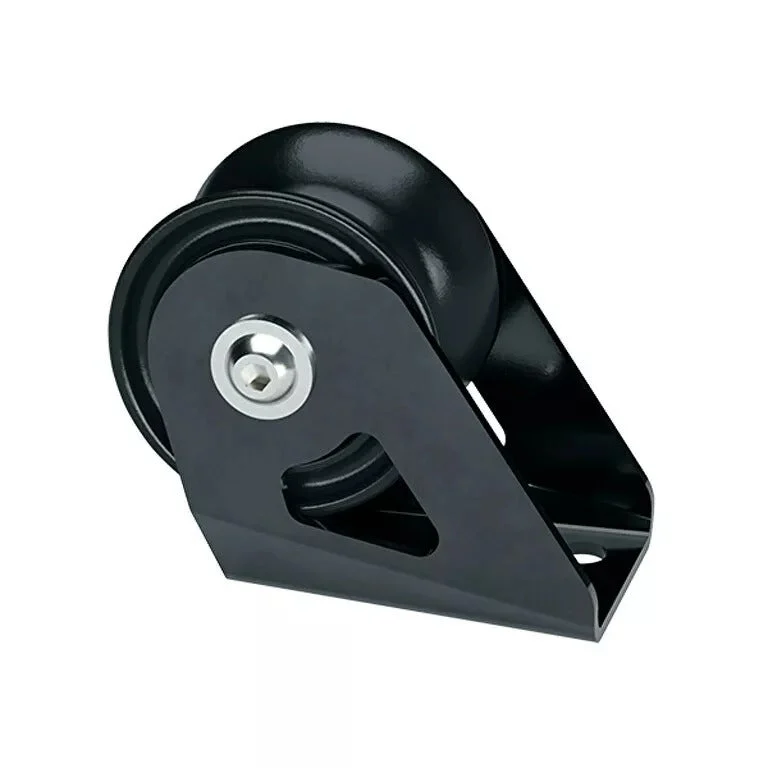

Harken 45mm Tulip Vertical Fixed Block
In these applications, one fixed tulip block can replace a block plus a baseplate plus a shackle or loop
Technical Description
| Sheave Ø (mm) | 45 mm |
| Sheave Ø (in) | 1 3/4 in |
| Length (mm) | 69 mm |
| Length (in) | 2 11/16 in |
| Width (mm) | 42 mm |
| Width (in) | 1 5/8 in |
| Height (mm) | 57 mm |
| Height (in) | 2 1/4 in |
| Weight (g) | 187 g |
| Weight (oz) | 6.6 oz |
| Maximum line Ø (mm) | 12 mm |
| Maximum line Ø (in) | 1/4 in |
| Number of fasteners | 3 |
| Fasteners (mm) | 6 mm |
| Maximum working load (kg) | 1247 kg |
| Maximum working load (lb) | 2750 lb |
| Breaking load (lb) | 5500 lb |
| Breaking load (kg) | 2495 kg |
