Description

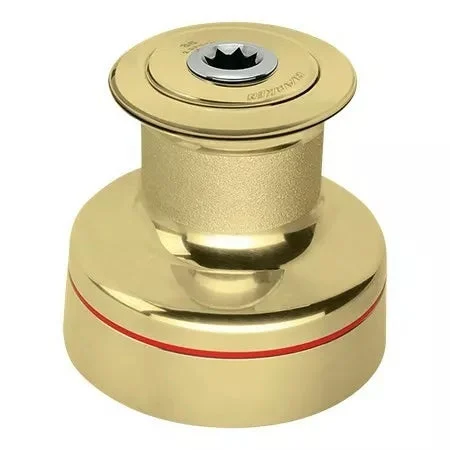

Harken 46 Plain-Top Radial Bronze Winch – 2 Speed
Harken Radial Line winches have successfully balanced the need for a secure grip and line longevity with smooth, controlled easing while under load. Details sailors will appreciate: smaller winches that carry higher loads, stress-free seasonal maintenance, and one-person installation. Plain-top winches are best handled by two crew—one to trim and one to tail the line.
Technical Description
| Weight (kg) | 9.7 kg |
| Weight (lb) | 21.4 lb |
| Fasteners (mm) | M8 SH mm |
| Fasteners (in) | 5/16 SH in |
| Fastener circle (mm) | 150 mm |
| Fastener circle (in) | 5 7/8 in |
| Height (mm) | 179 mm |
| Height (in) | 7 1/16 in |
| Number of fasteners | 5 |
| Material | Bronze |
| Configuration | Plain-top |
| Speed | 2 |
| Drum Ø (mm) | 100 mm |
| Drum Ø (in) | 3 7/8 in |
| Base Ø (mm) | 184 mm |
| Base Ø (in) | 7 1/4 in |
| Line entry height (mm) | 90 mm |
| Line entry height (in) | 3 9/16 in |
| Gear ratio – 1 | 2.30 |
| Gear ratio – 2 | 9.17 |
| Power ratio – 1 | 11.70 |
| Power ratio – 2 | 46.50 |
| Available power | Manual |
