Description

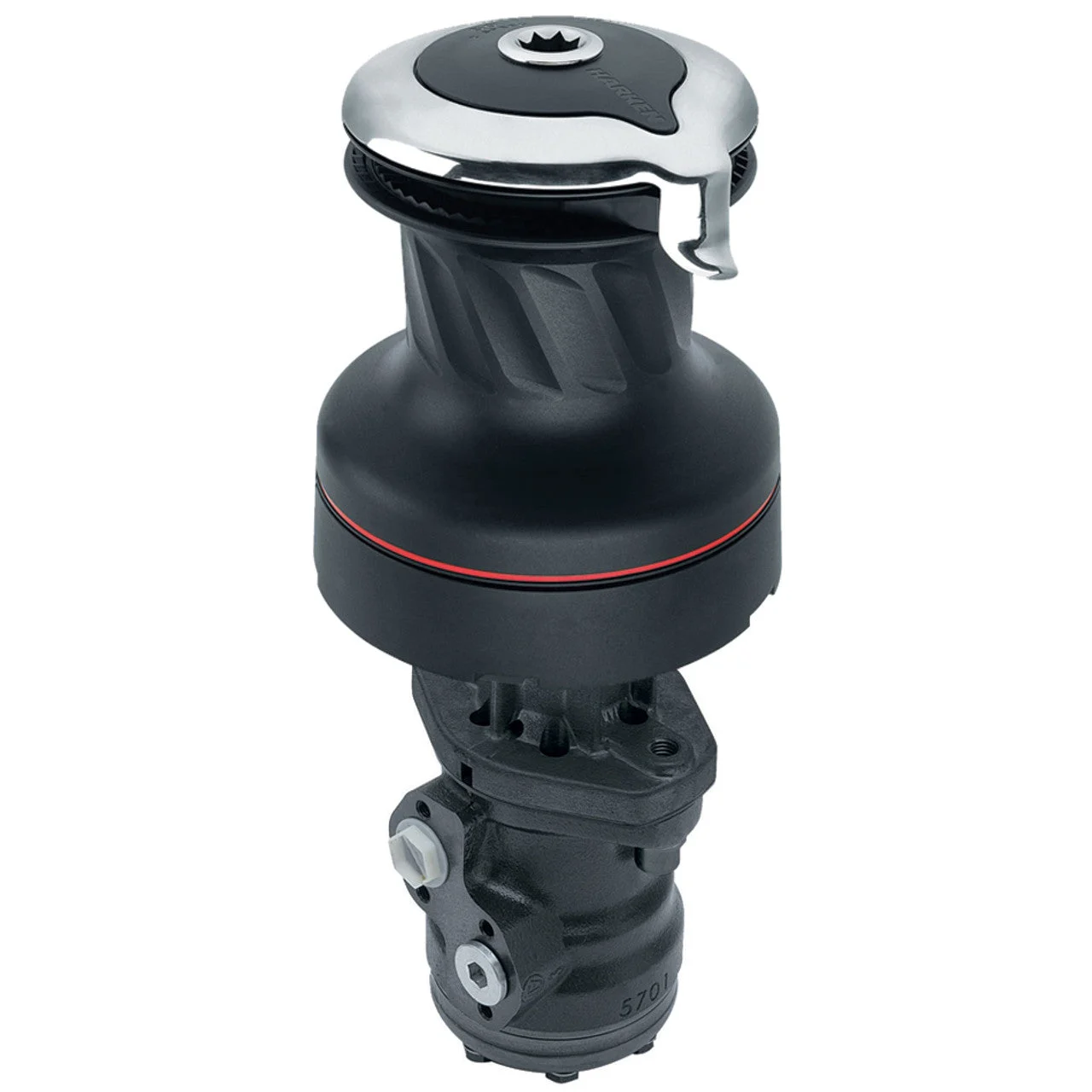

Harken 60 Hydraulic Self-Tailing Radial Aluminum Winch 3 Speed, Vertical
Powered Radial winches allow crew to trim any size sail with the push of a button. Composite roller bearings reduce friction under load and don’t require lubrication. Load-carrying gears and pins are 17-4PH stainless steel for strength and durability.
Technical Description
| Material | Aluminum |
| Configuration | Self-tailing |
| Speed | 3 |
| Drum Ø (mm) | 120 mm |
| Drum Ø (in) | 4 3/4 in |
| Base Ø (mm) | 236 mm |
| Base Ø (in) | 9 5/16 in |
| Height (mm) | 246 mm |
| Height (in) | 9 11/16 in |
| Weight (kg) | 11.7 kg |
| Weight (lb) | 25.8 lb |
| Weight of Winch and Motor (kg) | 19.2 |
| Weight of Winch and Motor (lb) | 42.4 |
| Motor weight (kg) | 7.5 kg |
| Motor weight (lb) | 16.6 lb |
| Line entry height (mm) | 116 mm |
| Line entry height (in) | 4 9/16 in |
| Minimum line Ø (mm) | 8 mm |
| Minimum line Ø (in) | 5/16 in |
| Maximum line Ø (mm) | 16 mm |
| Maximum line Ø (in) | 5/8 in |
| Fasteners (mm) | M8 SH mm |
| Fasteners (in) | 5/16 SH in |
| Fastener circle (mm) | 204 mm |
| Fastener circle (in) | 8 in |
| Number of fasteners | 6 |
| Gear ratio – 1 | 2.2 |
| Gear ratio – 2 | 4.8 |
| Gear ratio – 3 | 14.4 |
| Power ratio – 1 | 9.2 |
| Power ratio – 2 | 20.3 |
| Power ratio – 3 | 61 |
| Voltage (V) | 24 |
| Available power | Hydraulic |
| Hydraulic L (mm) | 234 mm |
| Hydraulic L (in) | 9.25 in |
| Hydraulic N (mm) | 130 mm |
| Hydraulic N (in) | 5.125 in |
