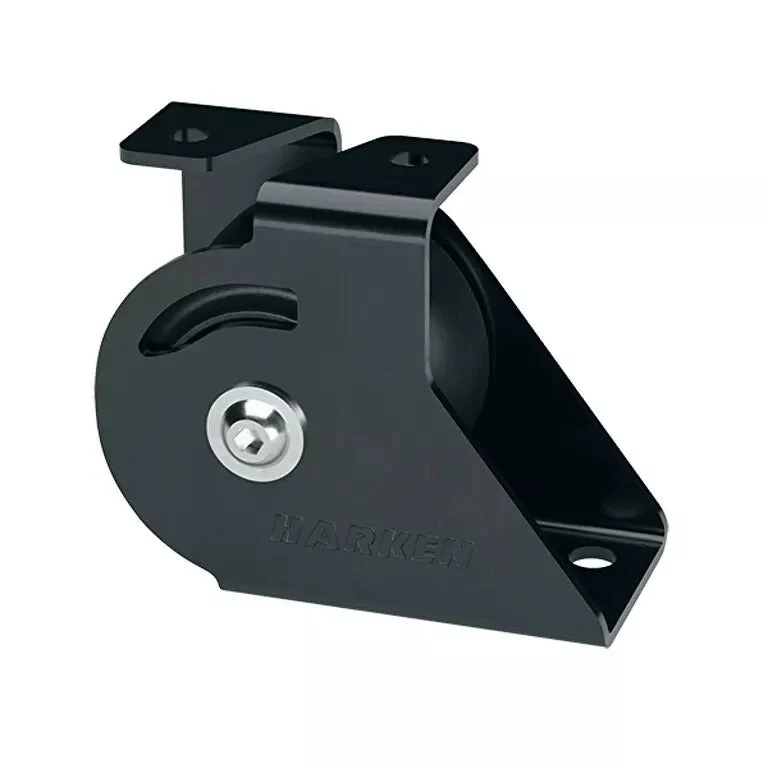

Harken 60 mm Tulip Over-the-Top Block
Designed to facilitate full 90 degree deflections in rope path, facilitating horizontal to vertical transitions over cabintops to cockpit floors on offshore catamarans. Their unique divides design allows for one line to be substituted for another in the middle of a system rather than requiring a complete re-rig through a rope clutch.
Technical Description
| Sheave Ø (mm) | 60 mm |
| Sheave Ø (in) | 2 3/8 in |
| Length (mm) | 92 mm |
| Length (in) | 3 5/8 in |
| Width (mm) | 54 mm |
| Width (in) | 2 1/8 in |
| Height (mm) | 53 mm |
| Height (in) | 3 1/8 in |
| Weight (g) | 456 g |
| Weight (oz) | 16 oz |
| Maximum line Ø (mm) | 14 mm |
| Maximum line Ø (in) | 6/16 in |
| Fasteners (mm) | 8 mm |
| Fasteners (in) | 5/16 in |
| Maximum working load (kg) | 2268 kg |
| Maximum working load (lb) | 5000 lb |
| Breaking load (kg) | 4536 kg |
| Breaking load (lb) | 10000 lb |
| Number of fasteners | 3 |
