Description

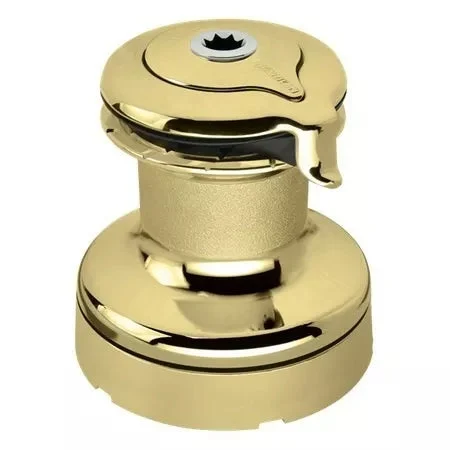

Harken 60 Self-Tailing Radial Bronze Winch – 2 Speed
Harken Radial Line winches have successfully balanced the need for a secure grip and line longevity with smooth, controlled easing while under load. Details sailors will appreciate: smaller winches that carry higher loads, stress-free seasonal maintenance, and one-person installation. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.
Technical Description
| Weight (kg) | 15.4 kg |
| Weight (lb) | 33.9 lb |
| Maximum line Ø (mm) | 16 mm |
| Maximum line Ø (in) | 5/8 in |
| Fasteners (mm) | M8 SH mm |
| Fasteners (in) | 5/16 SH in |
| Fastener circle (mm) | 204 mm |
| Fastener circle (in) | 8 in |
| Height (mm) | 246 mm |
| Height (in) | 9 11/16 in |
| Number of fasteners | 6 |
| Material | Bronze |
| Configuration | Self-tailing |
| Speed | 2 |
| Drum Ø (mm) | 120 mm |
| Drum Ø (in) | 4 3/4 in |
| Base Ø (mm) | 236 mm |
| Base Ø (in) | 9 5/16 in |
| Line entry height (mm) | 116 mm |
| Line entry height (in) | 4 9/16 in |
| Minimum line Ø (mm) | 8 mm |
| Minimum line Ø (in) | 5/16 in |
| Gear ratio – 1 | 4.80 |
| Gear ratio – 2 | 14.40 |
| Power ratio – 1 | 20.30 |
| Power ratio – 2 | 61.00 |
| Available power | Manual |
