Description

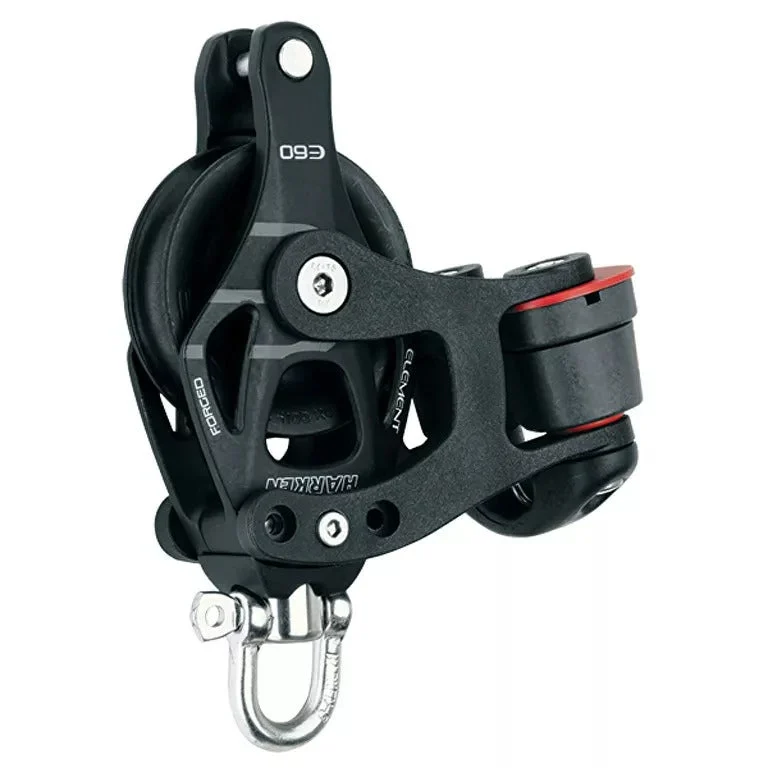

Harken 60mm Aluminum Element Single Swivel Block w/150 Cam & Becket
Element blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks. Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.
Technical Description
| Sheave Ø (mm) | 60 mm |
| Sheave Ø (in) | 2 3/8 in |
| Length (mm) | 146 mm |
| Length (in) | 5 3/4 in |
| Weight (g) | 320 g |
| Weight (oz) | 11.2 oz |
| Shackle pin Ø (mm) | 6 mm |
| Shackle pin Ø (in) | 1/4 in |
| Maximum line Ø (mm) | 12 mm |
| Maximum line Ø (in) | 1/2 in |
| Maximum working load (kg) | 272 kg |
| Maximum working load (lb) | 600 lb |
| Breaking load (kg) | 544 kg |
| Breaking load (lb) | 1200 lb |
