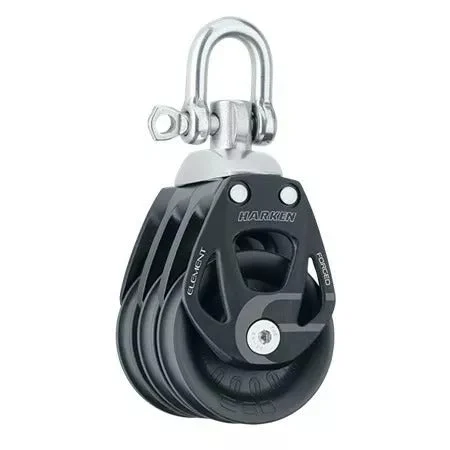

Harken 60mm Aluminum Element Triple Swivel Block

Sale!

Harken 60mm Aluminum Element Triple Swivel Block

Original price was: $174.35.Current price is: $45.33.

Buy now
SKU: HR6272 Category: Tag:

Description

Harken 60mm Aluminum Element Triple Swivel Block

Element blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks. Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.

Technical Description

Sheave Ø (mm) 60 mm
Sheave Ø (in) 2 3/8 in
Length (mm) 146 mm
Length (in) 5 3/4 in
Weight (g) 520 g
Weight (oz) 18.2 oz
Shackle pin Ø (mm) 8 mm
Shackle pin Ø (in) 5/16 in
Maximum line Ø (mm) 14 mm
Maximum line Ø (in) 9/16 in
Maximum working load (kg) 1650 kg
Maximum working load (lb) 3638 lb
Breaking load (kg) 3300 kg
Breaking load (lb) 7276 lb
