Description

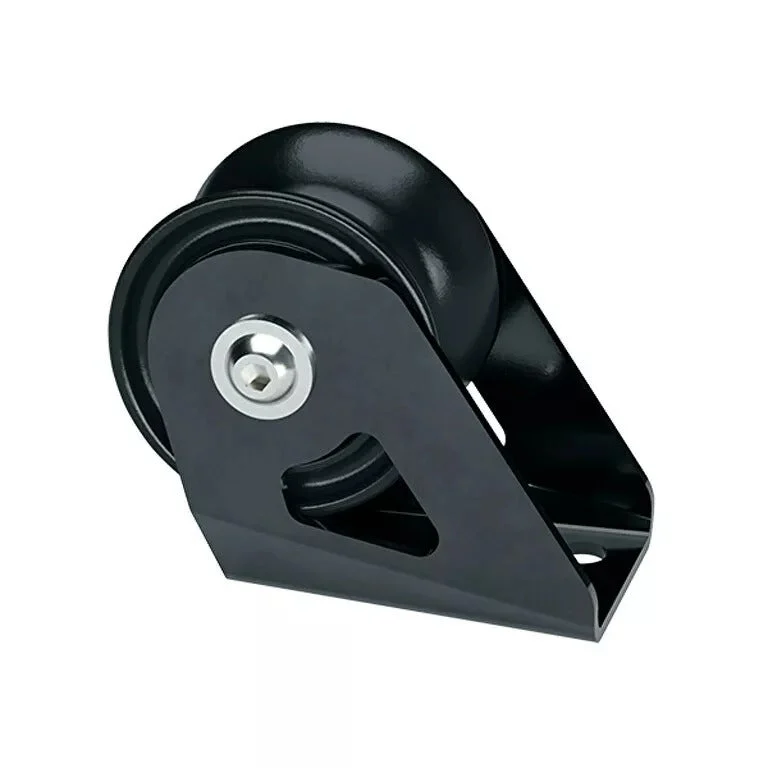

Harken 60mm Tulip Vertical Fixed Block
In these applications, one fixed tulip block can replace a block plus a baseplate plus a shackle or loop
Technical Description
| Sheave Ø (mm) | 60 mm |
| Sheave Ø (in) | 2 3/8 in |
| Length (mm) | 91 mm |
| Length (in) | 3 9/16 in |
| Width (mm) | 54 mm |
| Width (in) | 2 1/8 in |
| Height (mm) | 76 mm |
| Height (in) | 3 in |
| Weight (g) | 400 g |
| Weight (oz) | 14 oz |
| Maximum line Ø (mm) | 14 mm |
| Maximum line Ø (in) | 5/16 in |
| Number of fasteners | 3 |
| Fasteners (mm) | 8 mm |
| Maximum working load (kg) | 2268 kg |
| Maximum working load (lb) | 5000 lb |
| Breaking load (lb) | 10000 lb |
| Breaking load (kg) | 4536 kg |
