Description

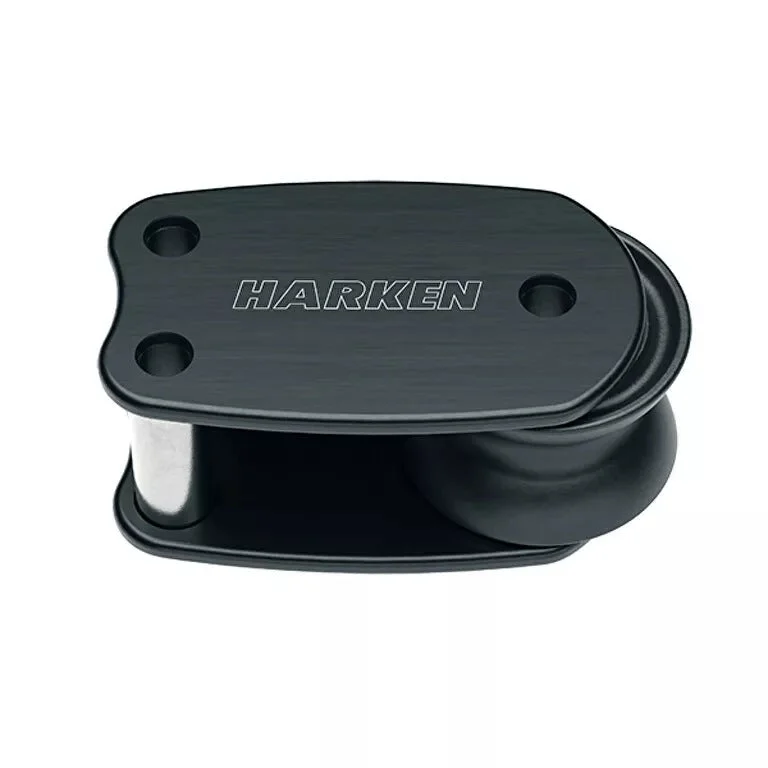

Harken 75mm Tulip Footblock
Footblocks are, by definition, fixed to the deck. Our new tulip sheave design helps realign lead angle in situations where the lead is not perfectly aligned with the block – situations where off-center loading would cause significant additional friction with a narrower conventional sheave
Technical Description
| Sheave Ø (mm) | 75 mm |
| Sheave Ø (in) | 2 15/16 in |
| Length (mm) | 143 mm |
| Length (in) | 5 5/8 in |
| Width (mm) | 83 mm |
| Width (in) | 3 1/4 in |
| Height (mm) | 65 mm |
| Height (in) | 2 9/16 in |
| Weight (g) | 660 g |
| Weight (oz) | 7/16 oz |
| Maximum line Ø (mm) | 14 mm |
| Maximum line Ø (in) | 9/16 in |
| Number of fasteners | 3 |
| Fasteners (mm) | 12 mm |
| Fasteners (in) | 7/16 in |
| Maximum working load (kg) | 2608 kg |
| Maximum working load (lb) | 5750 lb |
| Breaking load (lb) | 11500 lb |
| Breaking load (kg) | 5216 kg |
