Description

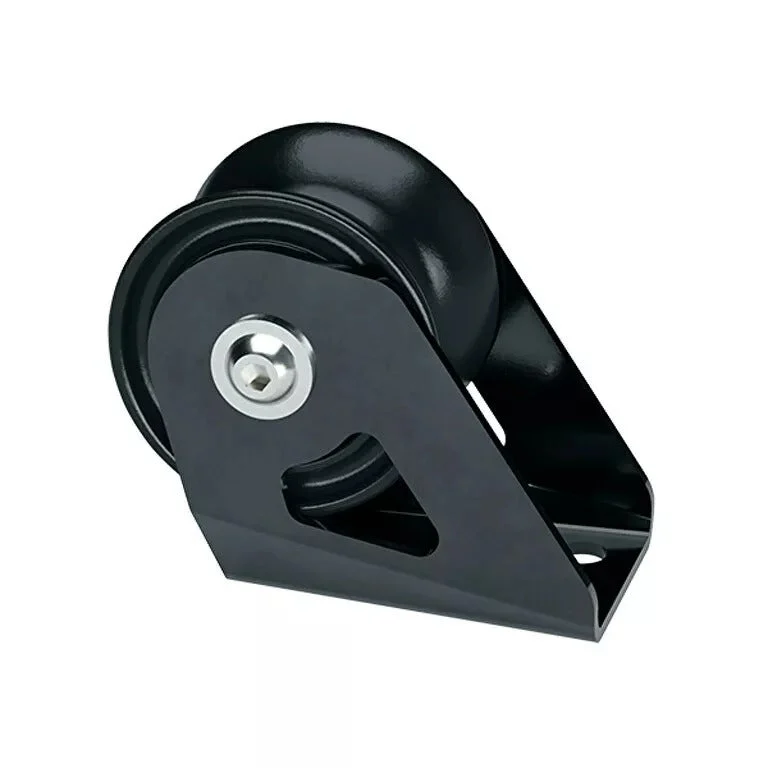

Harken 75mm Tulip Vertical Fixed Block
In these applications, one fixed tulip block can replace a block plus a baseplate plus a shackle or loop
Technical Description
| Sheave Ø (mm) | 75 mm |
| Sheave Ø (in) | 2 15/16 in |
| Length (mm) | 114 mm |
| Length (in) | 4 1/2 in |
| Width (mm) | 66 mm |
| Width (in) | 2 9/16 in |
| Height (mm) | 95 mm |
| Height (in) | 3 3/4 in |
| Weight (g) | 724 g |
| Weight (oz) | 25.5 oz |
| Maximum line Ø (mm) | 14 mm |
| Maximum line Ø (in) | 3/8 in |
| Number of fasteners | 3 |
| Fasteners (mm) | 10 mm |
| Maximum working load (kg) | 3629 kg |
| Maximum working load (lb) | 8000 lb |
| Breaking load (lb) | 16000 lb |
| Breaking load (kg) | 7257 kg |
