Description

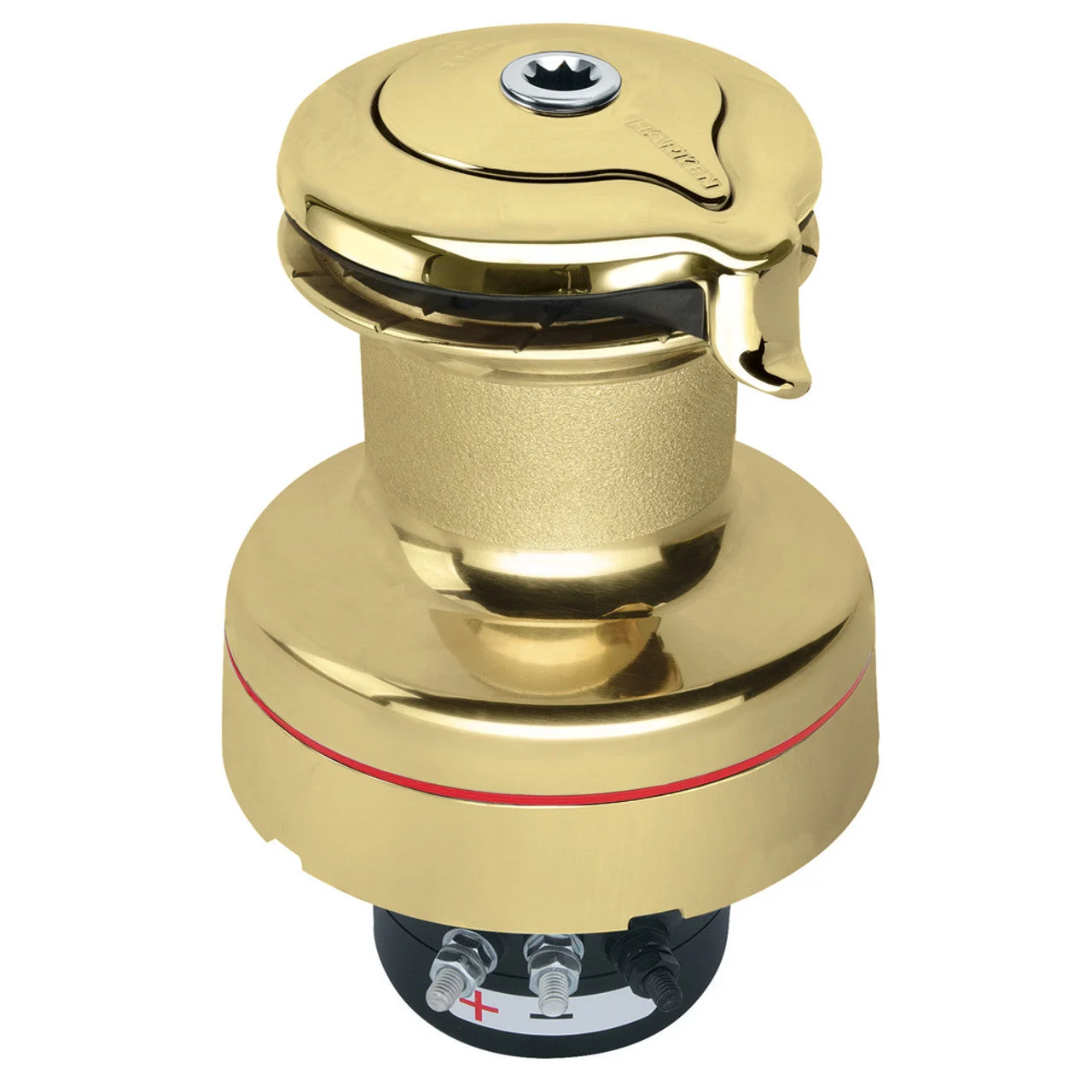

Harken 900 Electric UniPower Self-Tailing Radial Bronze Winch – 12V
The UniPower is a single-speed winch that combines the advantages of a low-profile manual winch with the power of a 12- or 24-volt, low-amp-draw motor. What makes it unique is that the motor is partially imbedded inside the drum, so that it extends only 105 mm (4 1/8 inches) below the winch base—a critical feature for small boats where space under the cabin top is limited. Composite roller bearings reduce friction under load and don’t require lubrication. Gears are 17-4PH stainless steel for strength and durability. Harken recommends the single function digital switch DSSBK and circuit breaker HCP1717. Sold separately.
Technical Description
| Weight (kg) | 15.7 kg |
| Weight (lb) | 34.6 lb |
| Maximum line Ø (mm) | 14 mm |
| Maximum line Ø (in) | 9/16 in |
| Fasteners (mm) | M8 SH mm |
| Fasteners (in) | 5/16 SH in |
| Fastener circle (mm) | 160 mm |
| Fastener circle (in) | 6 5/16 in |
| Height (mm) | 215 mm |
| Height (in) | 8 1/2 in |
| Number of fasteners | 5 |
| E (mm) | 35 mm |
| E (in) | 1 3/8 in |
| F (mm) | 105 mm |
| F (in) | 4 1/8 in |
| G (mm) | 140 mm |
| G (in) | 5 1/2 in |
| Material | Bronze |
| Configuration | Self-tailing |
| Speed | 1 |
| Drum Ø (mm) | 110 mm |
| Drum Ø (in) | 4 3/8 in |
| Base Ø (mm) | 190 mm |
| Base Ø (in) | 7 1/2 in |
| Line entry height (mm) | 100 mm |
| Line entry height (in) | 3 15/16 in |
| Minimum line Ø (mm) | 8 mm |
| Minimum line Ø (in) | 5/16 in |
| Maximum pulling load (kg) | 900 kg |
| Maximum pulling load (lb) | 1984 lb |
| Available power | Electric vertical 12V |
| Voltage (V) | 12 |
