Description

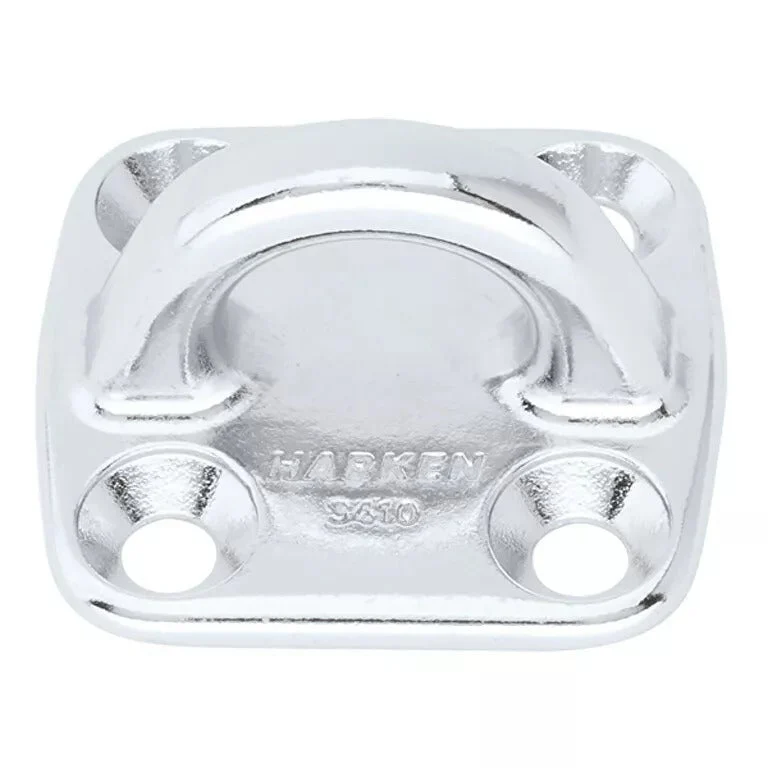

Harken Small Square Duplex Padeye
Not all sailors know this: there are different grades of stainless steel and they offer different takes on the balance between structural strength and corrosion resistance. Duplex is a class of stainless steel, new to Harken’s pad-eye line-up. It offers increased amounts of chromium in the alloy for enhanced corrosion resistance at very high relative strengths. All sailors should know this: Stainless does not mean maintenance free. Make sure to inspect structural stainless deck hardware regularly and clean and restore the finish as needed.
Technical Description
| Weight (g) | 107 g |
| Weight (oz) | 3.8 oz |
| Maximum working load (kg) | 2041 kg |
| Maximum working load (lb) | 4500 lb |
| Breaking load (kg) | 4082 kg |
| Breaking load (lb) | 9000 lb |
| A (in) | 2 in |
| A (mm) | 52 mm |
| B (in) | 1 7/8 in |
| B (mm) | 48 mm |
| C (in) | 1 3/16 in |
| C (mm) | 30 mm |
| D (in) | 1 3/16 in |
| D (mm) | 30 mm |
| E (in) | 1 3/16 in |
| E (mm) | 30 mm |
| F (in) | 5/8 in |
| F (mm) | 16 mm |
| G (in) | 7/8 in |
| G (mm) | 22 mm |
