Description

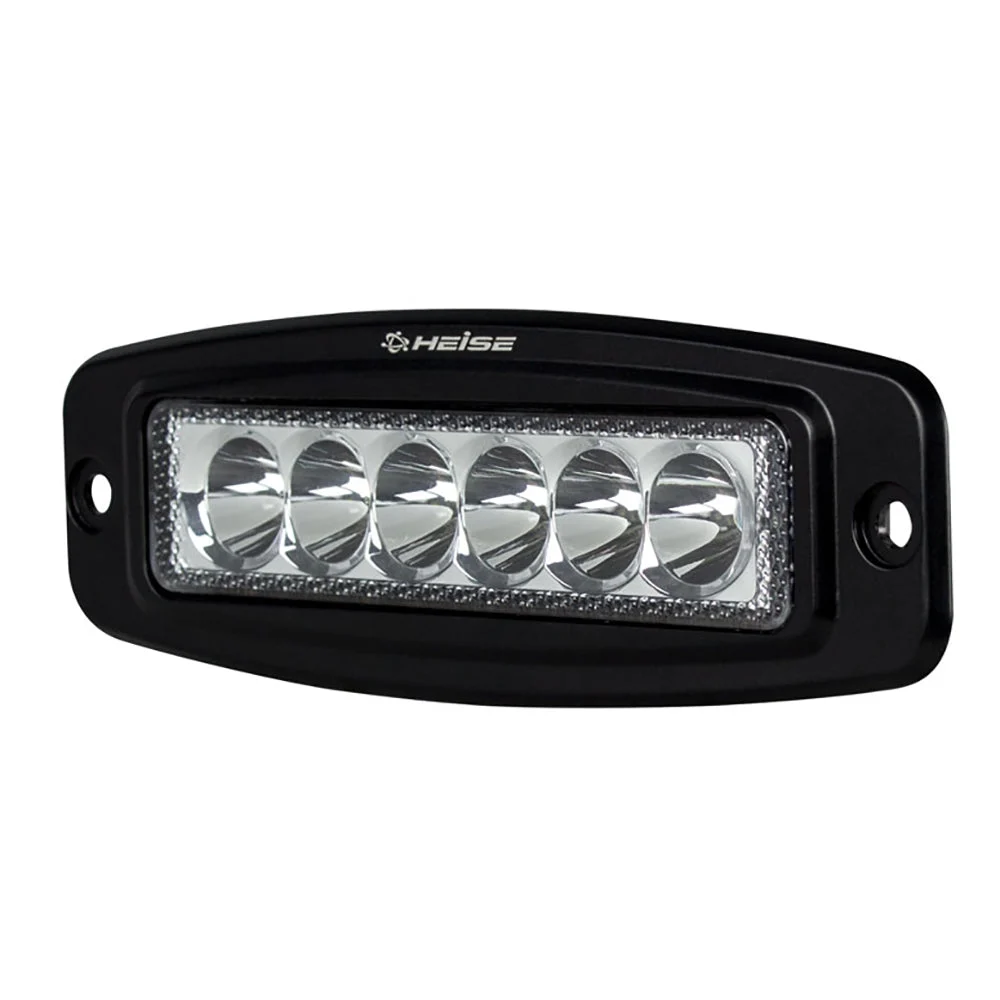

6 LED Single Row Driving Light – Flush Mount

SPECS

• Input Voltage: 10-30V DC
• Wattage: 18W (6-3W OSRAM LEDs)
• Raw Lumens: 1440
• Color Temperature: 6000K
• Beam Pattern: 25deg Spot

CONSTRUCTION

• Housing Material: Die-cast Aluminum Housing
• Housing Color: Black
• Lens Material: PC
• Mounting Bracket: Stainless Steel
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316 and includes a gasket and a cut-out template

OPERATION

• Operating Temperature: -40degC to +60degC
• Current Consumption: .9 amps at 13.8 volts
• IP Rating: IP67
• Protections: Reverse Polarity

SPECS input voltage: 10-30V DC power: 18W (6-3W OSRAM LED) Original lumens: 1440 Color temperature: 6000KB Beam mode: 25deg Spot- Construction shell material: die-cast aluminum…
SKU: NVN-69766
MPN: HE-FMDL1
UPC: 086429312924
