Description

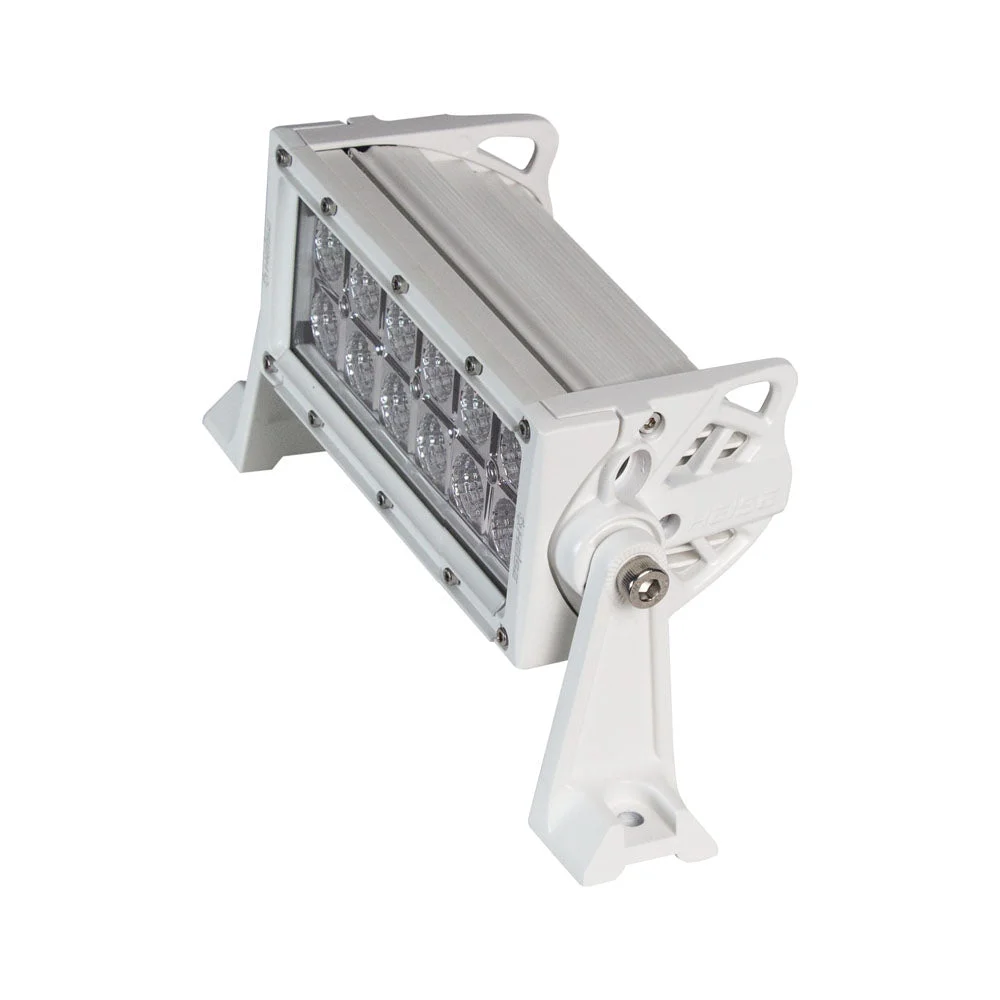

Dual Row Marine LED Light Bar – 8″

SPECS

• Input Voltage: 10-30V DC
• Wattage: 36W (12-3W CREE LEDs)
• Raw Lumens: 2880
• Color Temperature: 6000K
• Beam Pattern: Combo/Flood(90deg)/Spot(8deg)

CONSTRUCTION

• Housing Material: Die-cast Aluminum Housing
• Housing Color: White Coating with UV Inhibitors
• Membrane: Gore™
• Lens Material: PC
• Mounting Bracket: Die-cast Aluminum
• Hole Dimensions: Brackets turned inward – 7.25in
• Brackets turned outward – 9.5in
• Mounting Bolt Drill – .25in
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316

OPERATION

• Operating Temperature: -40degC to +60degC
• Current Consumption: 1.9 amps at 13.8 volts
• IP Rating: IP68
• Protections: Reverse Polarity

“Environmentallights ComTwo rows of six 3-watt Cree LEDs emit 2,880 raw lumens in a versatile flood (90 beam width) or an 8 spotlight with this combo. Die-cast aluminum housing with UV inhibitors and a polycarbonate lens translates to long life on the water. Gore membrane ensures waterproof protection over the integrated-epoxy encapsulated electrical components.”
SKU: NVN-69770
MPN: HE-MDR8
UPC: 086429312887
