Description

To accommodate new engine designs and individual boater requests, Mercury has continued to develop prop hub alternatives. Flo-Torq hubs have gone through several versions, including sturdier hubs designed to handle high-performance engines and models that eliminate shift clunk when utilizing stainless steel props. There were and are still combinations of components that accommodate a variety of engines and fulfill the needs of different boaters. Propeller blades were merged with a small central hub that was put directly on the prop shaft before through-hub exhaust systems — and still are for some inboard propellers today. A simple “shear pin” or “drive pin” ran between the prop hub and shaft to safeguard the early drive train.

Key Features:

• All spline parts are greased and sealed in the manufacture.
• The splines are coated with a special polymer that allows them to last longer, have a lower coefficient of friction, and require less maintenance (reduced sliding force).

Applications:

Mercury Mark 75-110, 7.5-10 hp

For use in 1″ I.D. hub cavity.

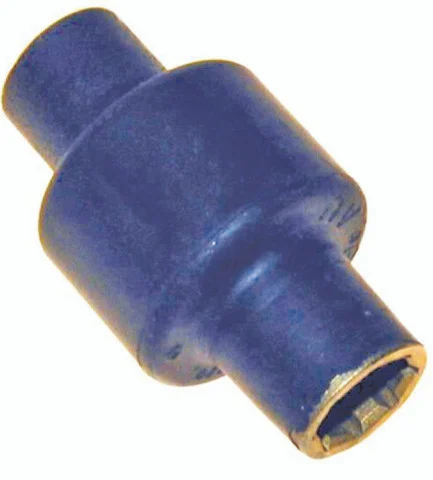

Specifications:

• SKU: VS-49
• Spindle length: 2.200″ (2 3/16″)
• Flange Dia.: **
• Rubber O.D.: 1.230″
• Uses Wear Ring: none
• Rubber Duro: 65
• Spline count: 8 spline

• Inside Dia.: 0.588″

Engine Application

Mariner

Mariner U.S. production 7.5-15 hp 1968-later, Same spindle as VS-55

Mariner

Mariner U.S. production 7.5-15 hp 1968-later, Same spindle as VS-55

Mercury

Mercury 7.5-10 hp 1968-85

This product replaces:

426301, 42630-1, 42630, 388, 1, VS-19, VS-49, VS-19-70, VS19, VS49, 185
