Description

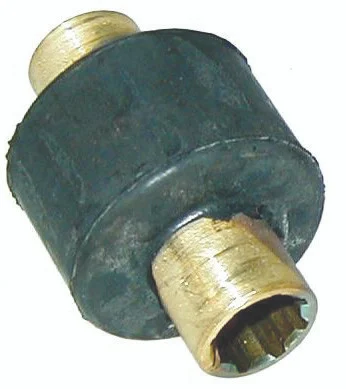

HMS Hub 8 Spline Mercury (VS-55) are ridges or teeth on a drive shaft that fit grooves in a matching piece and transfer torque to it while maintaining angular alignment. It allows for a bit of length difference between the driving and driven units without causing damage to the output and input bearings.

Key Features:

• For use in 1 11/64″ I.D. hub cavity.

• Applications: Mercury 6-15 H.P. (Does not include Bigfoot Models).

• Composed of high-quality materials, light and reliable, high strength, anti-rust, sturdy and long-lasting.

• Ensures a perfect fit, form, and function for trouble-free use.

• Designed and developed for use in maritime applications.

• Rigorous quality you can trust.

• It is a cost-effective alternative that offers original equipment quality at a low price.

• Tested and validated throughout the manufacturing process for superior dependability to fulfill your quality standards.

• It replaces products VS-55, VS55, 827598T, 827598.

Specifications:

• SKU: VS-55

• UPC: VS-55

• Weight: 0.15 LBS

• Brand: HMS Hub

• Drive Type: 8 spline

• Hub Type: Rubber

• Spindle length: 2.191″ (2 3/16″)

• Rubber O.D.: 1.455″

• Max. Inside Dia.: 0.588″

• Uses Wear Ring: None

• Rubber Duro: 60

VS-55

• Spindle length: 2.191″ (2 3/16″)
• Flange Dia.: **
• Rubber O.D.: 1.455″
• Max. Inside Dia.: 0.588″
• Uses Wear Ring: none
• Rubber Duro: 60
• Spline count: 8 spline

This product replaces:

VS-55, VS55, 827598T, 827598
