Description

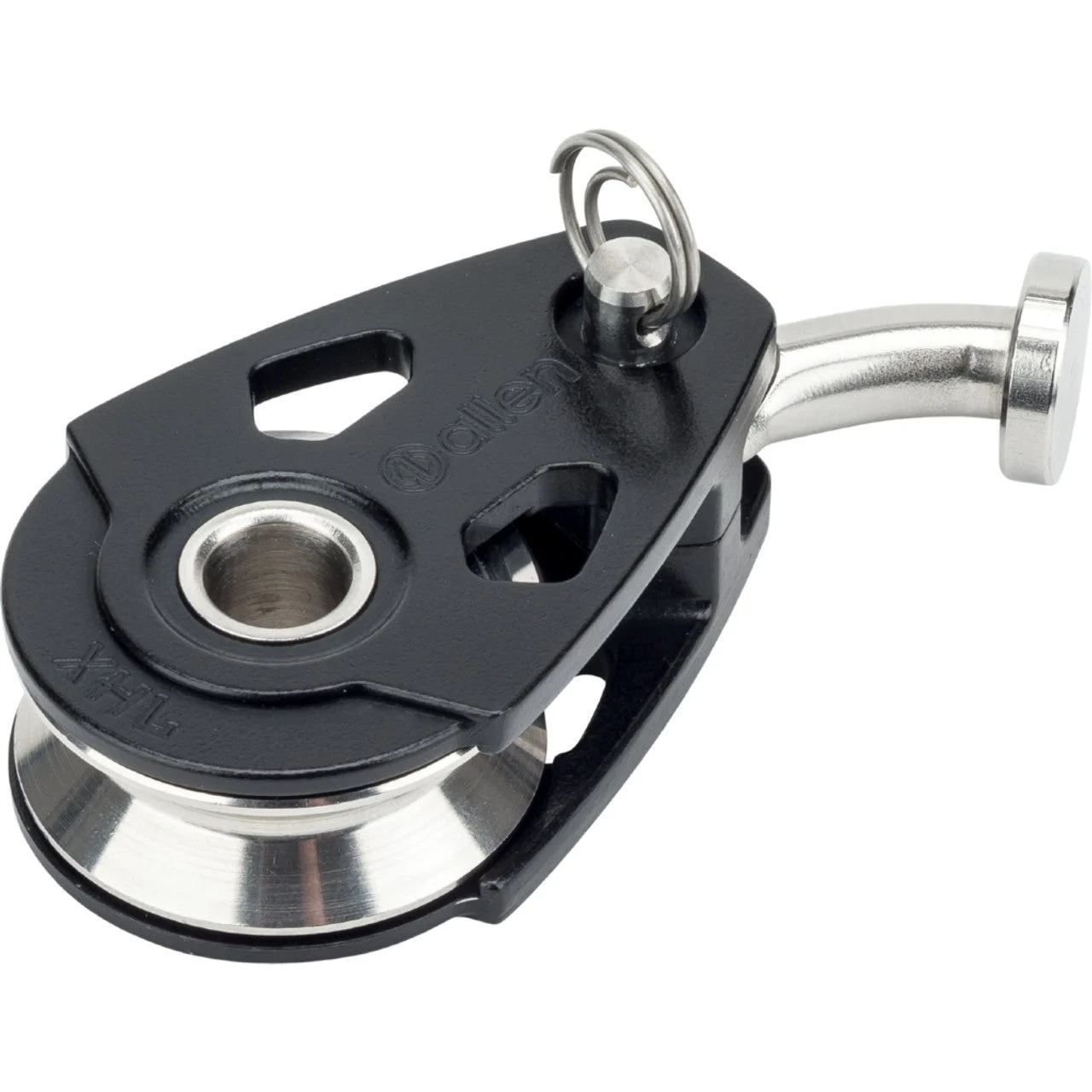

Single Extreme High Load Block For ILCA.

Designed with a custom body which incorporates the Laser/ ILCA vang key to give maximum strength in the smallest package possible. This design eliminates the need for shackles or rope

to attach the Vang key.

The XHL range has been designed to deal with extremely high loads without compromising on low load dynamic performance.

This has been achieved by combining the Allen dynamic bearing technology twin rows of stainless-steel ball bearings running on a stainless-steel axle with a plain bearing peek

washer.

The result is a bearing system which can take extreme static loads without damaging the dynamic performance of the ball bearings.

Features:

• CNC machined aluminium side cheeks.
• Replaceable Vang key.
• ILCA specific design.
• Precision turned stainless-steel sheave.
• 1000Kg breaking load (rated to the vang key)

Technical DescriptionFeaturesMetricAmericanLength1.89 in48 mmLine Diameter0.31 in8 mmClevis Pin0.20 in5 mmBreaking Load2204.62 lb1000 kgMWL771.62 lb350 kgWeight0.12 lb55 gBearing Detail-Stainless Steel
