Description

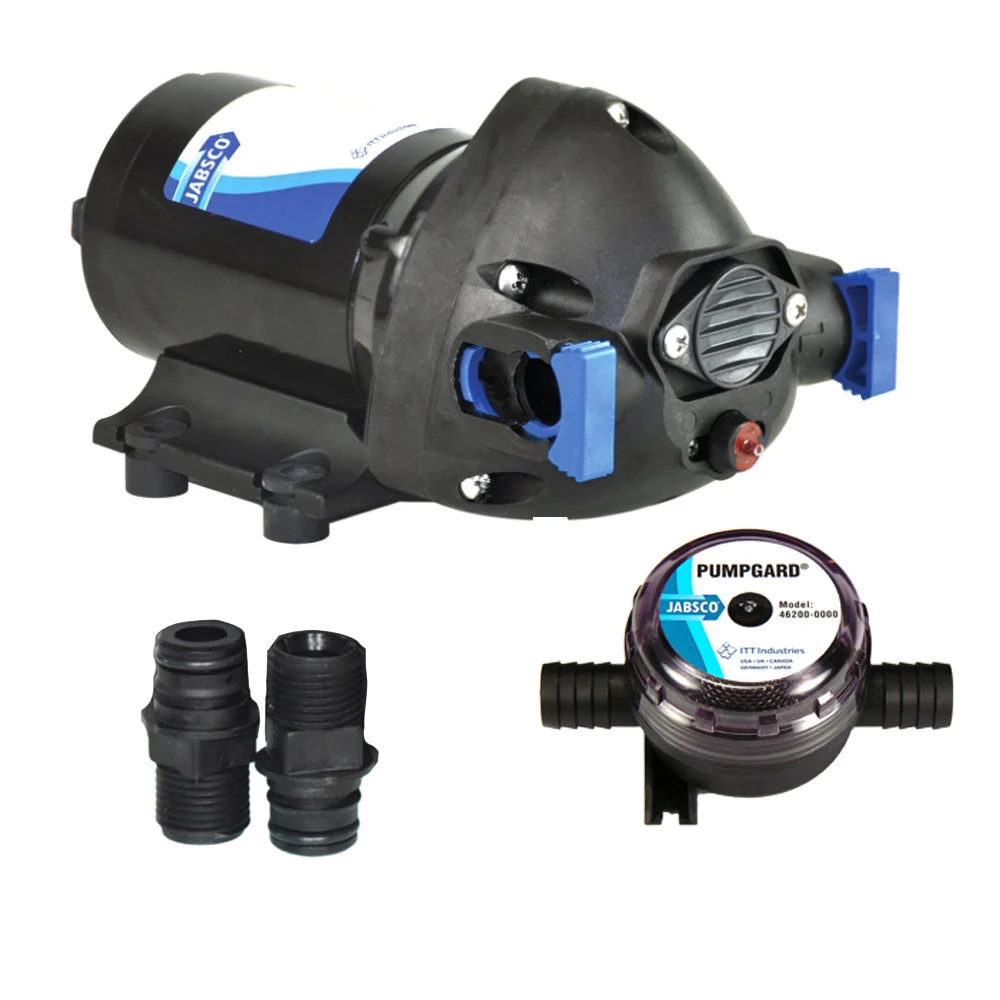

PAR-Max Shower Drain Pump – w/Strainer
32601-0092 12 volt DC model, fuse 10 amp.
New generation, long life fully serviceable shower drain pump.

• 3.5 gpm (13.2 lpm) at 3ft (1m) head.
• Self-priming up to 10ft (3m) allows mounting above wet bilges.
• Diaphragm design allows extended dry running.
• Continuous rated, heavy duty motor sealed for harsh bilge environments.
• Thermal overload protection automatically stops the motor if it overheats due to overloading, with auto re-start feature.
• Complies with USCG 183.410 and ISO 8846 MARINE (Ignition Protection).
• ISO 8849 MARINE (Bilge Pump Standard).
• Complete with Pumpgard.
• Oil resistant elastomers.
• Fitting: Connections for 3/4″ (19mm ) ID hose.
• Size: 7.7″ long x 4.2″ wide x 4.1″ high (19.6cm x 10.6cm x 10cm).
• Weight: 5.0lb (2.1kg).

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Jabsco 32601-0092 PAR-Max Shower Drain Pump (12V) has a flow rate of 3.5 GPM at a head of 3 feet, can self-prime up to 10 feet, and can be installed on a wet bilge. …
SKU: NVN-42530
MPN: 32601-0092
UPC: 671880595667
