Description

Vented Loop Solenoid Valve for 37010 Series Toilet

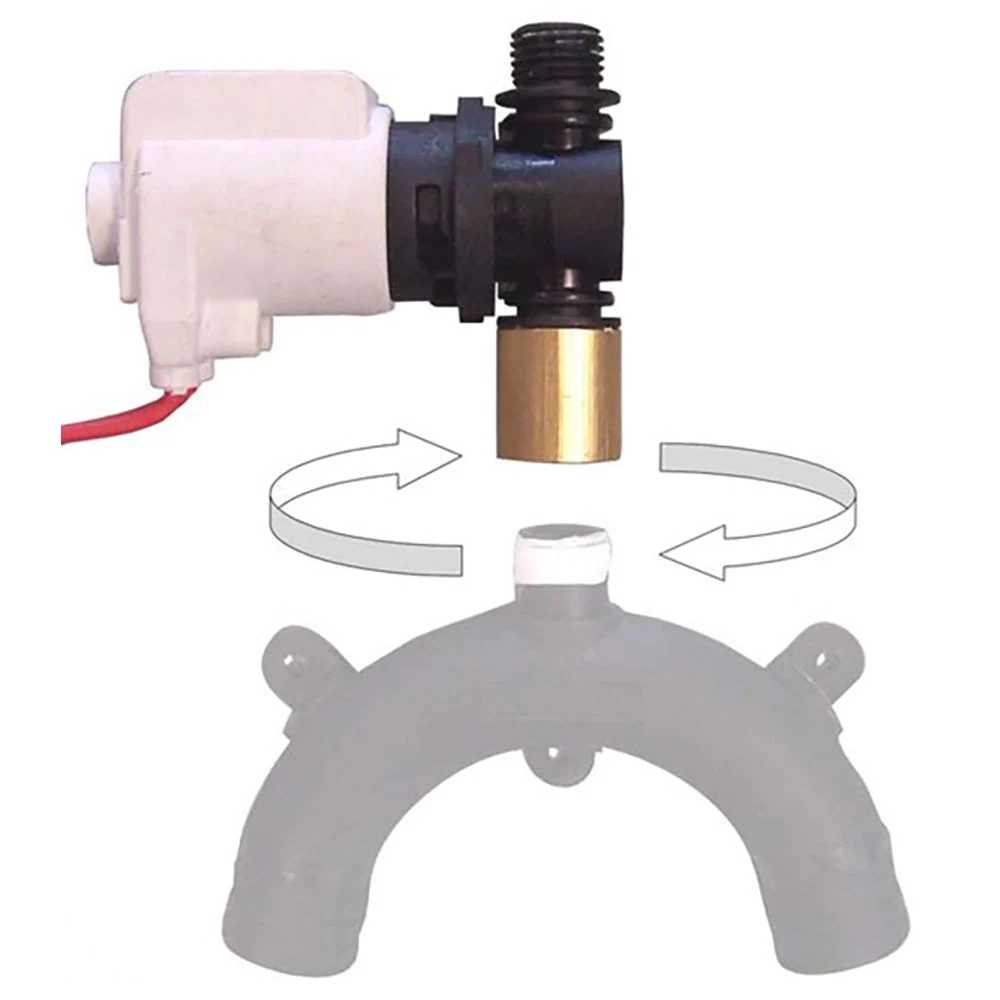

When installing a vented loop in the inlet hose, it is recommended that a Vented Loop Solenoid Valve (37068-2000) is connected to the vent air inlet to ensure maximum electric toilet performance and prime-ability. Connect the brass port of the valve (remove plastic filter, if installed) with the air inlet of the vented loop. Wire the solenoid valve in parallel with the toilet motor by connecting one side of the solenoid to the toilet flush switch and the other side to battery ground.

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

In order to ensure the maximum performance and starting ability of the electric toilet when the exhaust loop is installed in the intake hose, please connect the exhaust hole. Connect the brass port of
SKU: NVN-63358
MPN: 37068-2000
UPC: 671880587754
