Description

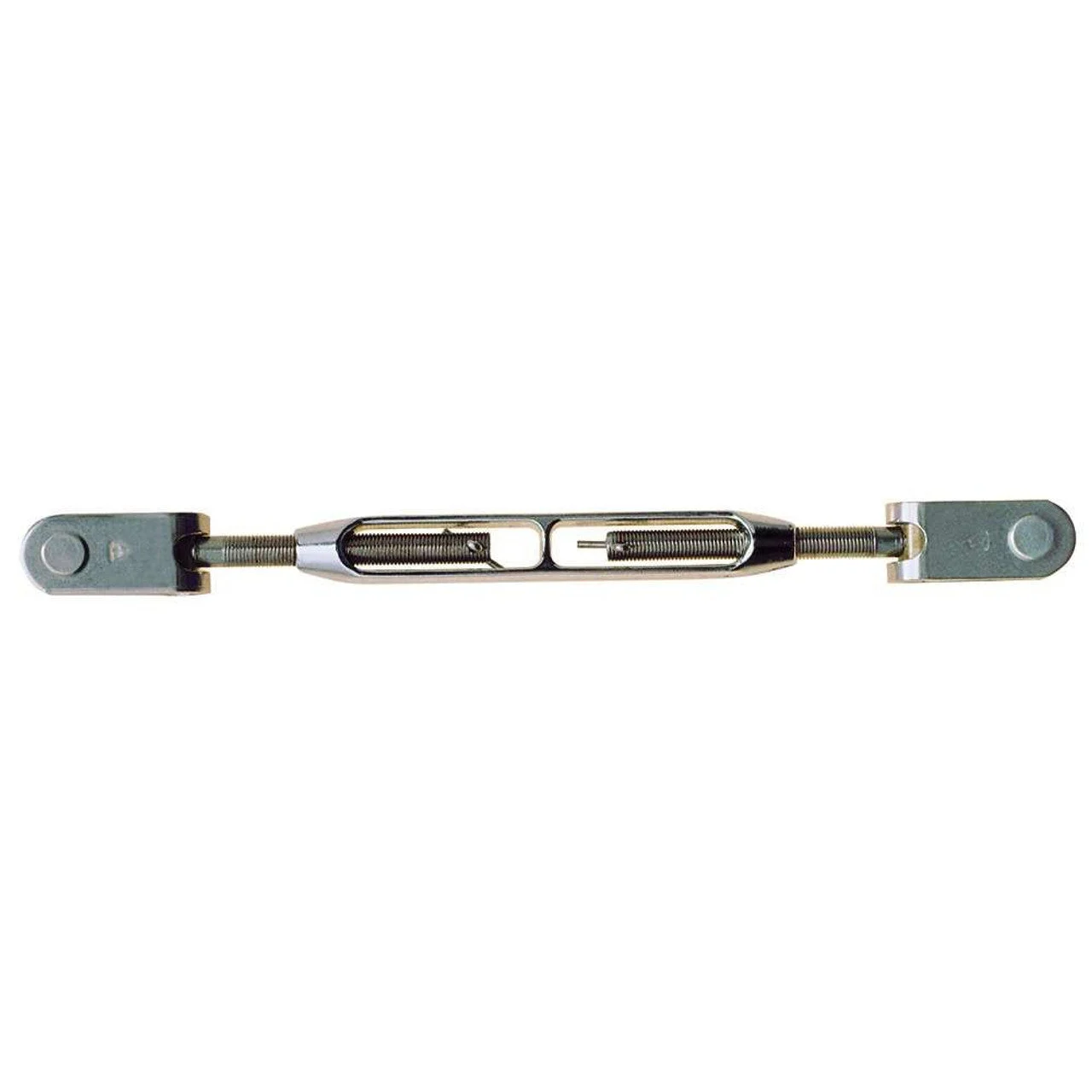

For those who prefer a traditional body turnbuckle. The forged silicon bronze body, coupled with our integral toggle jaw, provides positive locking and ease of adjustment. Forged silicon bronze bodies with 316 stainless ends offer a great non-galling combination. Integral toggle jaw eliminates the need for a separate rigging toggle.

• Wire Size to 3/8″
• Thread Size – 5/8-18
• Pin Diameter – 5/8″
• Body length – 7-3/4″
• Safe Working Load – 5900 Lbs
• Approx. Breaking Strength – 14800 Lbs
• Pin to Pin Length – (Length from 14-1/2″ Closed to 19″ Open)
