Description

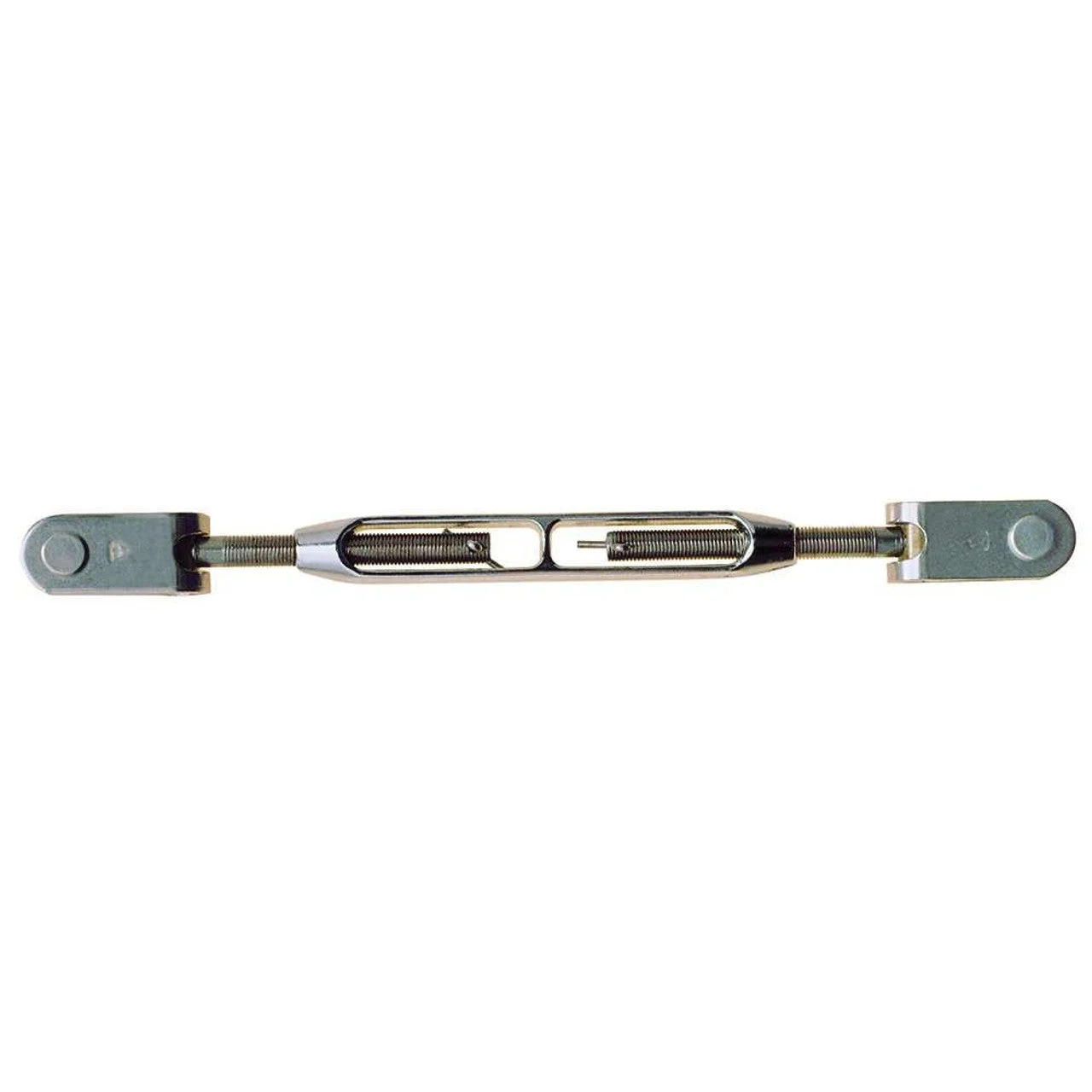

For those who prefer a traditional body turnbuckle. The forged silicon bronze body, coupled with our integral toggle jaw, provides positive locking and ease of adjustment. Forged silicon bronze bodies with 316 stainless ends offer a great non-galling combination. Integral toggle jaw eliminates the need for a separate rigging toggle.

• Wire Size to 5/16″
• Thread Size – 1/2-20
• Pin Diameter – 1/2″
• Body length – 6-1/2″
• Safe Working Load – 4200 Lbs
• Approx. Breaking Strength – 10500 Lbs
• Pin to Pin Length – (Length from 11-1/2″ Closed to 15-1/2″ Open)
