Description

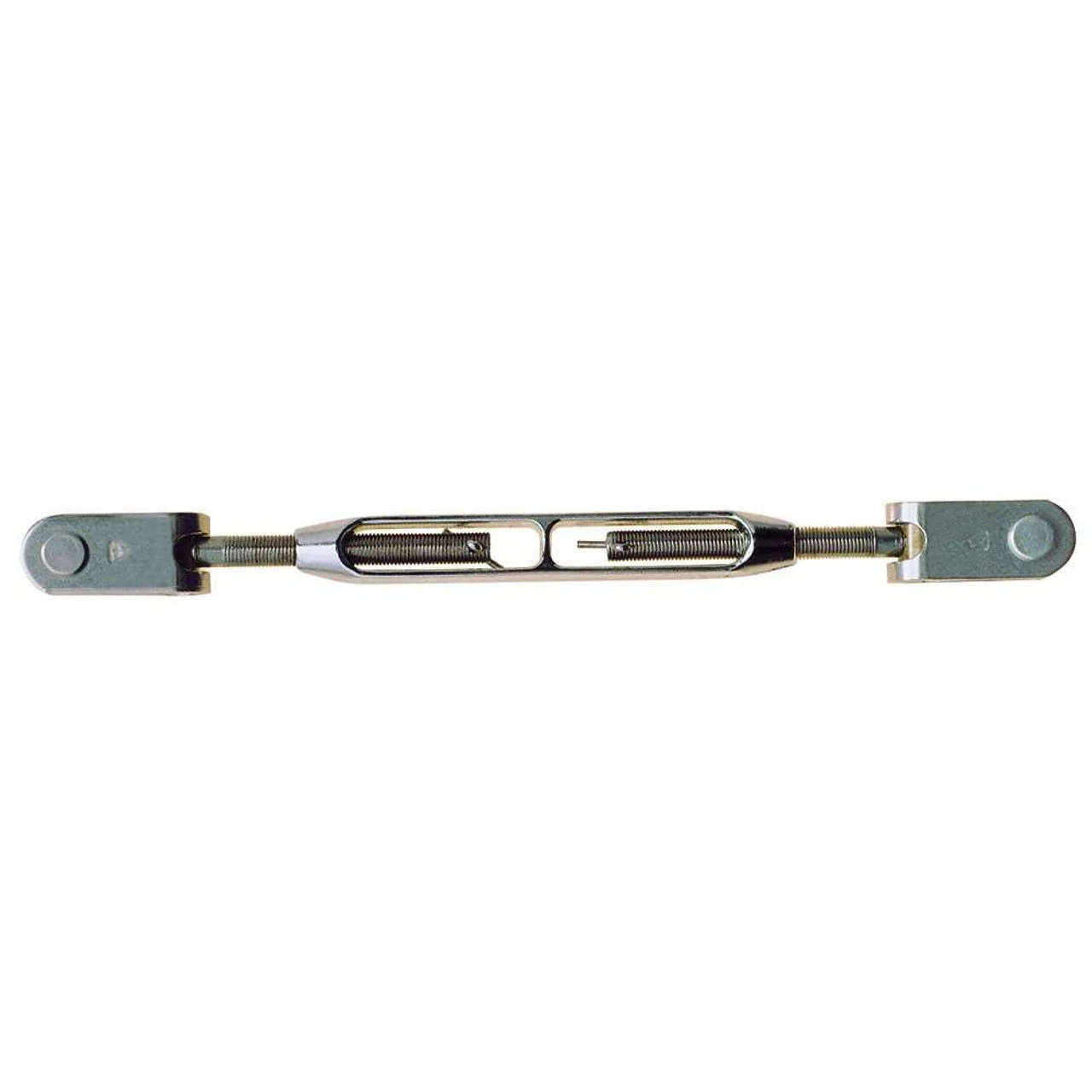

For those who prefer a traditional body turnbuckle. The forged silicon bronze body, coupled with our integral toggle jaw, provides positive locking and ease of adjustment. Forged silicon bronze bodies with 316 stainless ends offer a great non-galling combination. Integral toggle jaw eliminates the need for a separate rigging toggle.

• Wire Size to 1/4″
• Thread Size – 3/8-24
• Pin Diameter – 3/8″
• Body length – 5-1/2″
• Safe Working Load – 2800 Lbs
• Approx. Breaking Strength – 7000 Lbs
• Pin to Pin Length – (Length from 9-7/8″ Closed to 13-7/8″ Open)
