Description

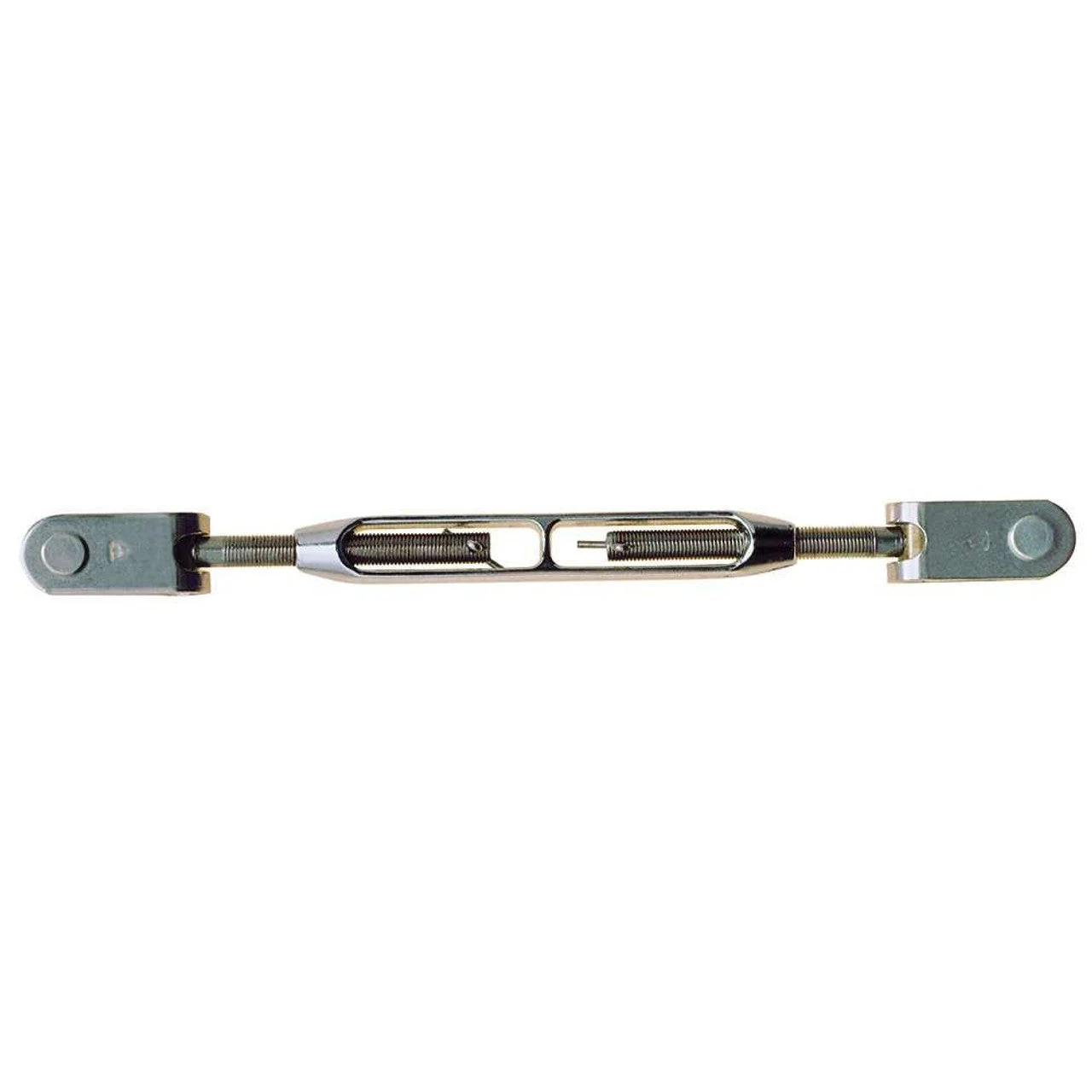

For those who prefer a traditional body turnbuckle. The forged silicon bronze body, coupled with our integral toggle jaw, provides positive locking and ease of adjustment. Forged silicon bronze bodies with 316 stainless ends offer a great non-galling combination. Integral toggle jaw eliminates the need for a separate rigging toggle.

• Wire Size to 3/16″
• Thread Size – 5/16-24
• Pin Diameter – 5/16″
• Body length – 4-7/8″
• Safe Working Load – 1600 Lbs
• Approx. Breaking Strength – 4000 Lbs
• Pin to Pin Length – (Length from 8-3/8″ Closed to 12″ Open)
