Description

Johnson Pumps 1013395103 Attributes

• Pump Operation: 12 Volt DC
• Flow Rate: 3.5 Gallon Per Minute
• Type: Self-Priming
• Pressure Rating (PSI): 41 Pound Per Square Inch
• Material: Polypropylene
• With Pressure Switch: No

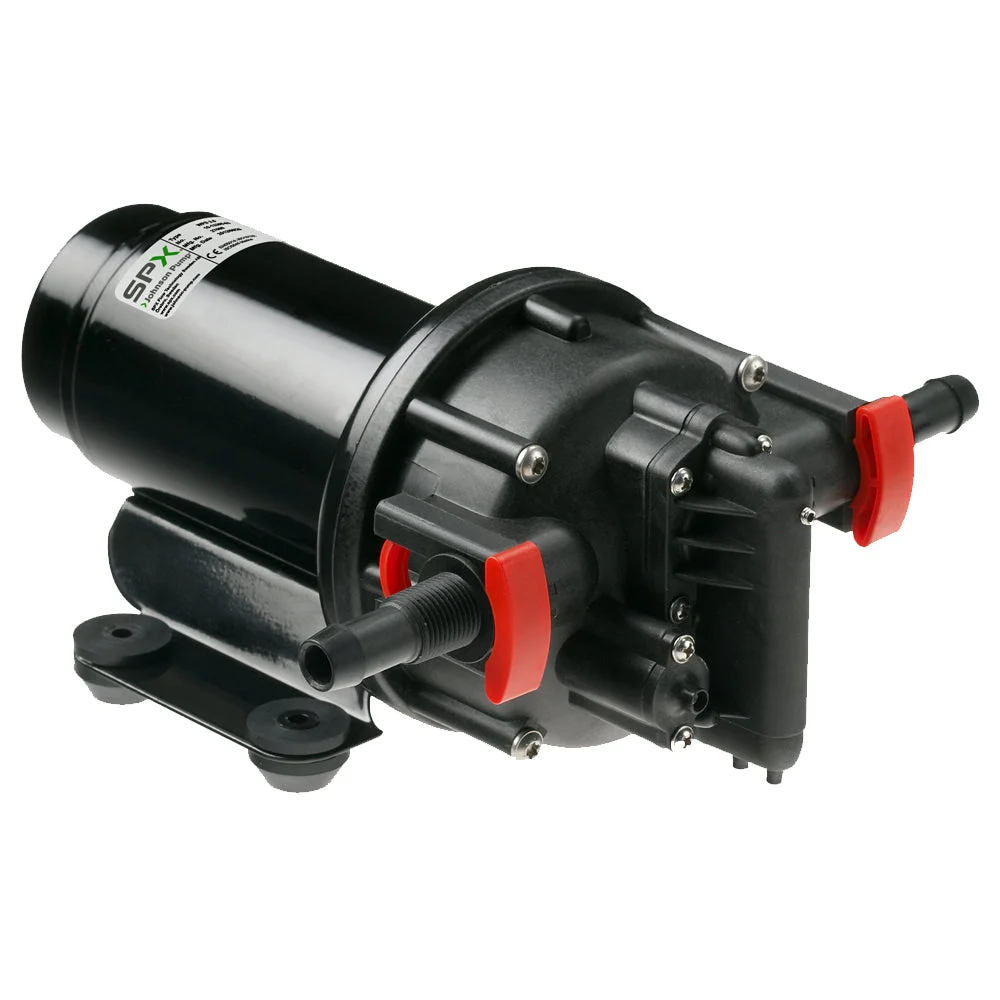

Aqua Jet Water Pressure Systems – 3.5GPM – 12V
The five chamber Aqua Jet WPS-series provides a reliable heart for small boat and recreational vehicle water pressure systems. Compared to conventional three or four-chamber diaphragm pumps, the Aqua Jet demonstrates dramatically lower noise and water pulsation characteristics. It is recommended to install the WPS-pumps with an accumulator tank. Always use a PUMProtector inlet strainer before the pump intake.
Diaphragm: Santoprene
Valves EPDM
Body: PP/PPA
Motor: 85W
Capacity: 13 l/min – 3.5 GPM
Pressure Cut Off:2.8 bar – 41psi
Fuze Size: 10 A
Connection:3/8″ NPT/hose 1/2″, 1/2″NPT/Hose 3/4″, 1/2″ NPT, 3/4″ Hose
Weight: 2 kg /4.5lbs
Length: 236,5 mm/9.31″
Width: 210 mm/8.25″
Height: 116 mm/4.575″
“Quiet and pulsation free even at low speeds, the Aqua Jet five chamber diaphragm pump provides the perfect water pressure solution for both small and medium sized leisure and commercial boats. Efficient and compact, Aqua Jet pumps are particularly suitable where low amperage and sounds levels in relation to water flow are placed at a premium, such as in shower and galley applications. Operates in fresh or sea water. Self priming. It is recommended to install pump with an accumulator tank. Always use a PUMProtector inlet strainer before the pump intake.”
SKU: NVN-49137
MPN: 10-13395-103
UPC: 7330717010461
