Description

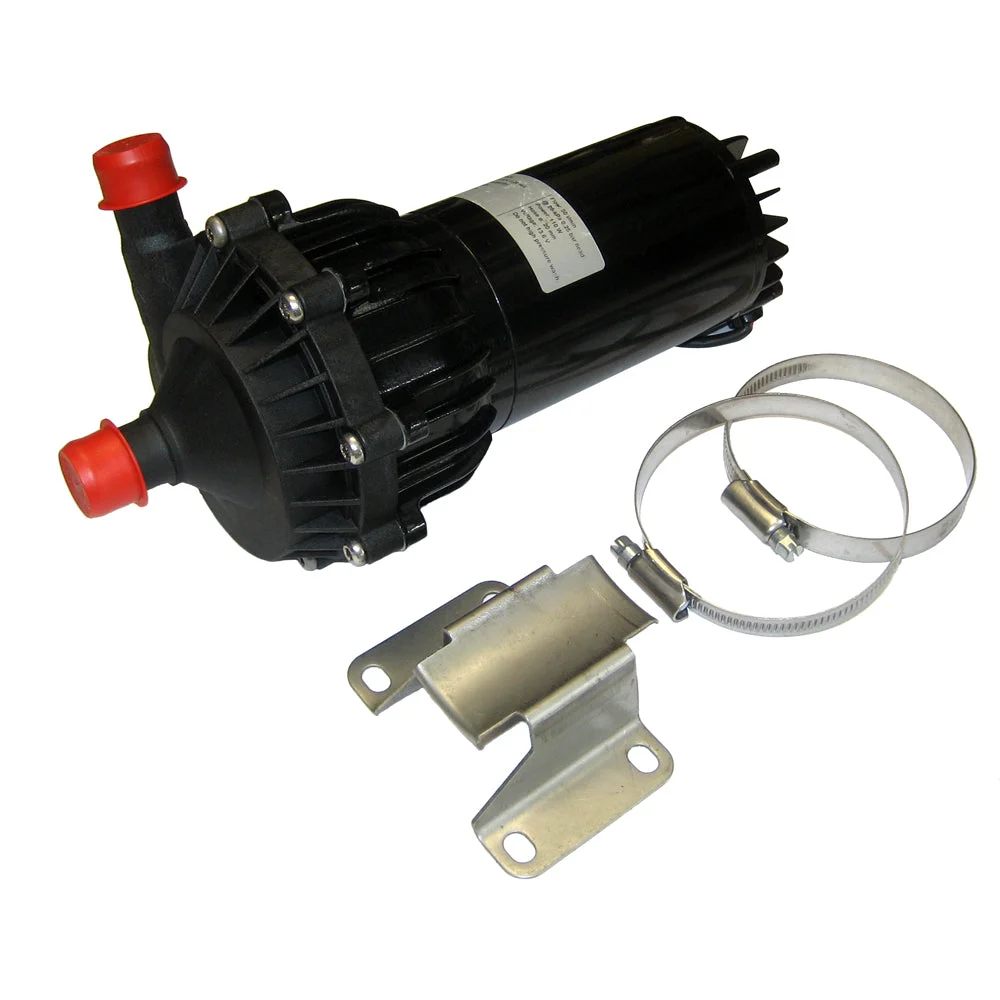

CM90 Circulation Pump – 17.2GPM – 12V – 3/4″ Outlet
CM90 circulation pumps are a line of compact magnetic driven centrifugal pumps which combine high flow rates with very low electric current consumption. Suitable for fresh water, ethylene glycol and salt water circulation. Glass-fiber reinforced PPA body.
Specifications:

• System Pressure:-0.3 to 3.0 bar; stationary max. 4.0 bar
• Liquid: Water/glycol mixture; max. 60% glycol, fresh and salt water
• Motor service life: More than 5,000 hours at nominal voltage, 10,000 start/stops. Interchangeable motor
• Dry running: 30 minutes
• Dimensions: 244mm L x 120mm W x 150mm H
• Weight: 6.6lbs
• Capacity: 17.2 GPM
• Ports: 3/4″

Gallons/hour 4.0 gallons/minute No operation No socket size No power supply-Maximum continuous ampere No psi No reversible 12 Volt No.
SKU: NVN-58195
MPN: 10-24750-09
UPC: 7330717000004
