Description

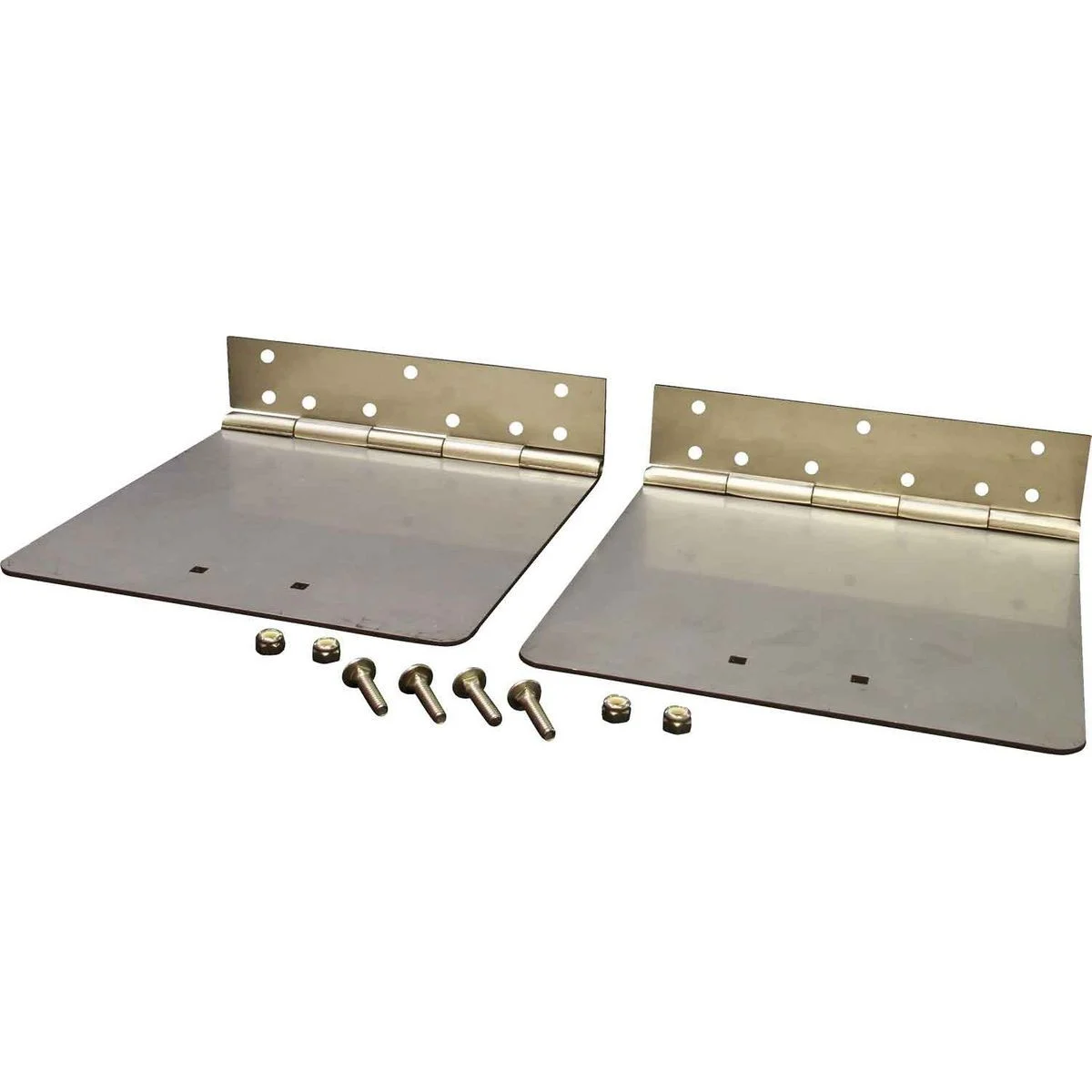

The stainless-steel trim tab design from Lectrotab offers unrivaled strength and dependability. A continuous rolled and pinned hinge is for all stainless-steel tabs. Welding is not necessary with this design. The tabs are corrosion-resistant 12-gauge 304 stainless steel and come in three finishes: normal, mirror, and black powder-coated.

Key Features:

• 12-gauge 304 stainless steel is strong and corrosion-resistant.
• The continuous rolled and pinned hinge adds strength while removing the need for welding.
• Standard chord lengths are 9″ (23cm) and 12″ (30cm), with widths ranging from 9″ (23cm) to 48″ (122cm) (122cm)
• Custom lengths and widths of chords are also available.
• There are two actuator mounting options.
• Available with black powder-coated or mirror finishes.
• Zinc anodes improve galvanic corrosion resistance.
• For tabs wider than 24″, a bent trailing edge is required.
• The actuator is mounted to the tab by carriage bolts and nuts.

Specifications:

• SKU: T9X9
• Weight: 1.00 LBS
• Manufacturer Part Number (MPN): T9X9
