Description

Field-attachable connectors allow you to make field connections to bulk cable. The color-coded screw terminals match the individual wire colors found within the bulk cable for error-free field installation.

Maretron FACFST Attributes

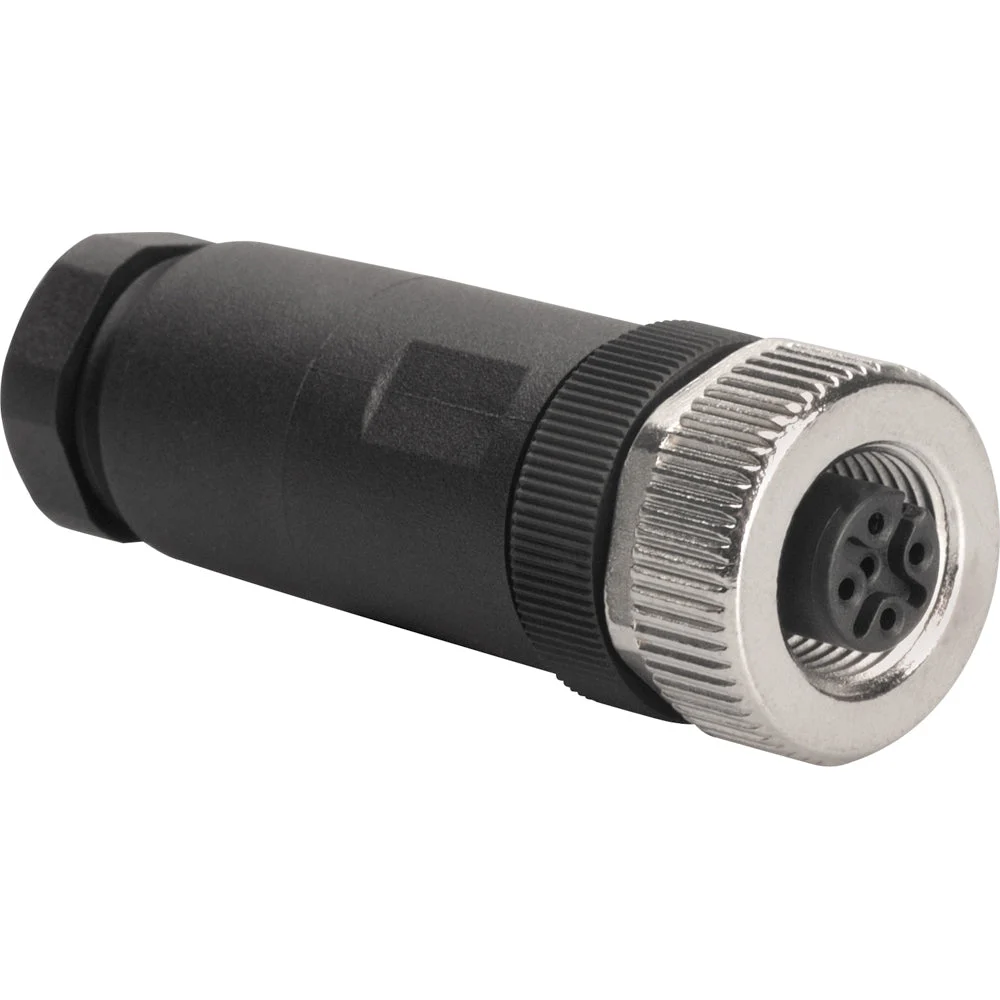

Micro Field-Attachable Connector
Field-attachable connectors allows you to make field connections to bulk cable. The color-coded screw terminals match the individual wire colors found within the bulk cable for error-free field installation.

Color-coded screw terminals make for error-free field installation

Rugged housing material designed to withstand harsh marine environments

Mini field connectors Field connectors allow you to make field connections with bulk cables. The color-coded screw terminals match the individual wires…

• Housing Mat/Plating: Nylon/Black
• Contact Mat/Plating: Brass/Gold
• Coupling Nut Mat/Plating: Brass/Nickel
• Maximum Wire Size: 18 (1.02mm) AWG
• Cable Grip Range: 6-8 mm

ELECTRICAL:

• Rated Current: 4.0 Amps
• Rated Voltage: 30 V AC/ 36 V DC

ENVIRONMENTAL:

• Protection Class: IEC IP67
• Temperature Range: -40°c TO 85°C (-40°F to 185°F)

APPROVALS:

• NMEA: NMEA 2000 Approved
• IEC: IEC-61162-3

SKU: NVN-31786
MPN: FA-CF-ST
UPC: 873804001685
