Description

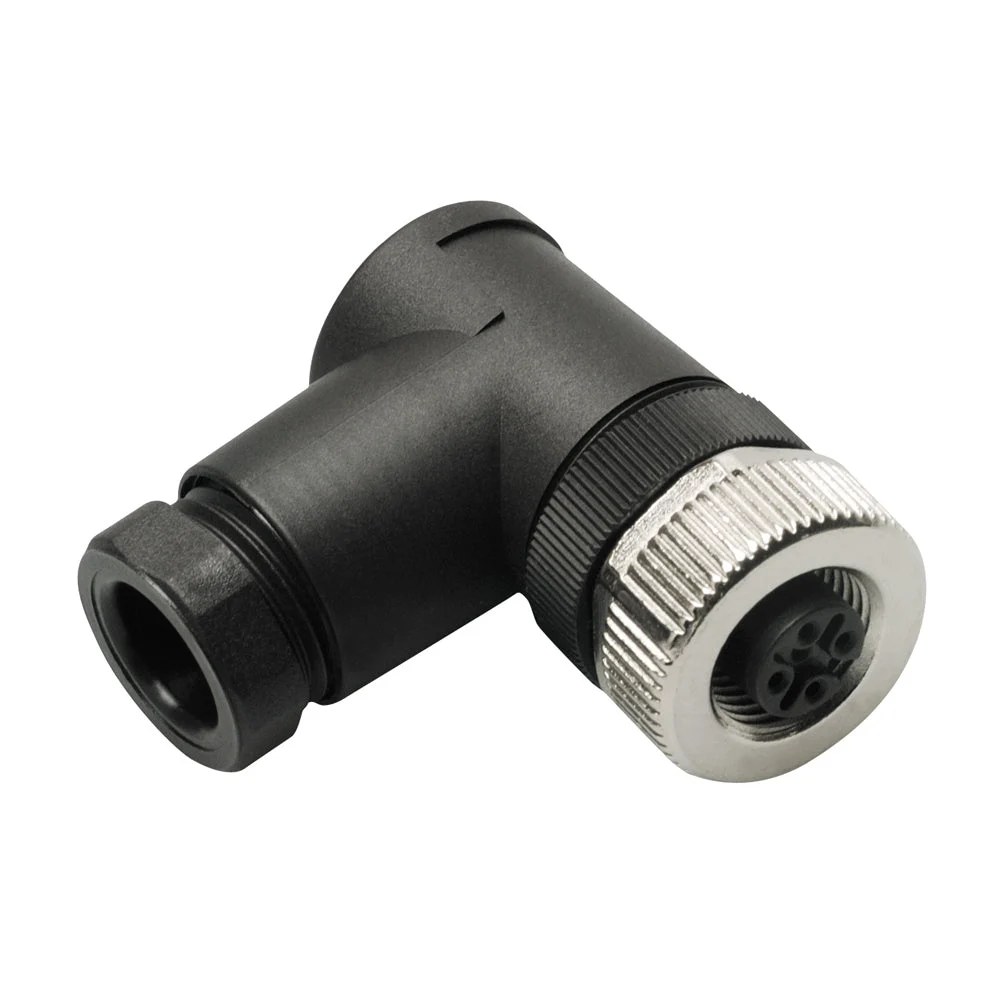

Like the straight Micro/Mid Field attachable Connectors, the 90° field attachable connectors allow you to make field connections to bulk cable. The 90° connectors are particularly well suited for tight spaces like the back of displays where there is limited space for a straight connector.
Maretron FACF90 Attributes
Like the straight Micro/Mid Field-attachable connectors, the 90 degree field attachable connectors allow you to make field conections to bulk cable. The 90 degree connectors are particularly well suited for tight spaces like the back of displays where there is limited space for a straight connector.
Like the straight Micro/Mid field connectable connector, the 90-degree field connectable connector allows you to connect field connections to bulk cables. 90 degree connector…
- Housing Mat/Plating: Nylon/Black
- Contact Mat/Plating: Brass/Optaloy
- Coupling Nut Mat/Plating: Brass/Nickel
- Maximum Wire Size: 18 (1.02mm) AWG
- Cable Grip Range: 6-8 mm
ELECTRICAL:
- Rated Current: 4.0 Amps
- Rated Voltage: 30 V AC/ 36 V DC
ENVIRONMENTAL:
- Protection Class: IEC IP67
- Temperature Range: -40°c TO 85°C (-40°F to 185°F)
APPROVALS:
- NMEA: NMEA 2000 Approved
- IEC: IEC-61162-3
SKU: NVN-35834
MPN: FA-CF-90
UPC: 873804001708
