Description
Mid Double-Ended Cordset – M to F – .5m (gray) – Double-ended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for error-free connection and are waterproof for continued operation even while submerged in the bilge.

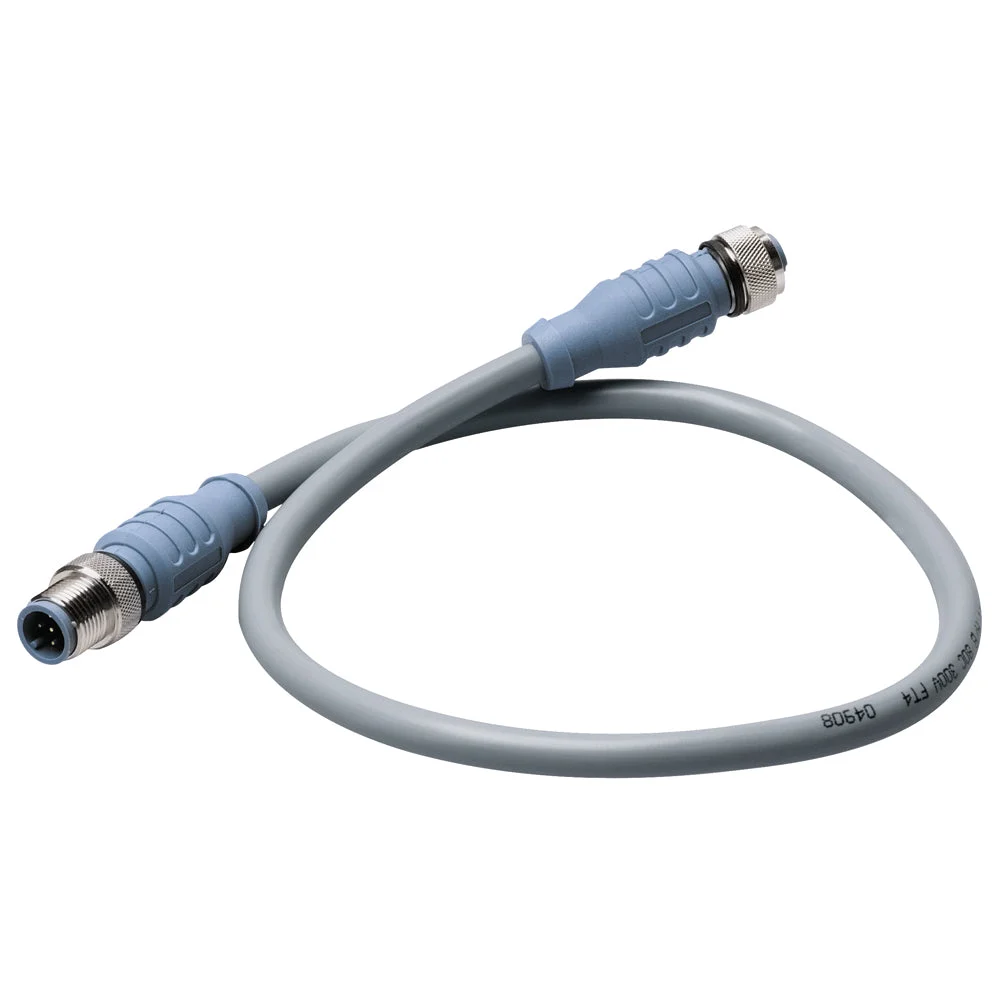

Maretron Mid Double-Ended Cordset – 0.5M Gray
Mechanical:
Electrical
Cable
ENVIRONMENTAL
APPROVALS
Male to female. The double-ended cable set is used for the trunk line or the lead-in line, which can ensure safe connection and simple and time-saving installation. The connector’s key prevents errors…
- Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
- Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
- Contact Mat/Plating: Brass/Gold
- Coupling Nut Mat/Plating: Brass/Nickel
- Connector Outside Diameter: 0.59â€
ELECTRICAL:
- Current Rating: 4.0 Amps
- Voltage Rating: 250 V
CABLE:
- Outer Jacket Mat/Color: PVC/Gray
- Conductor Insulation Material: PE (data pair), PVC (power pair)
- Number of Conductors: 2×16 (1.29mm) AWG, Data 2×20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
- Shielding (3 Levels): Alum/Polyester Foil (Overall), Foil (Power Pair), Foil (Data Pair)
ENVIRONMENTAL:
- Protection Class: IEC IP68, NEMA 1,3,4,6P
- Temperature Rating: -40°C to 80°C to (-40°F to 176°F)
APPROVALS:
- (Cable) UL: PLTC 75°C Sunlight Resistant E90625,
- AWM 80°C 300V
- (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75°C,
- AWM I/II A/B 80C 300V FT4
- NMEA: NMEA 2000 Approved
- IEC: IEC 61162-3
SKU: NVN-46987
MPN: DM-DG1-DF-00.5
UPC: 873804001760
