Description

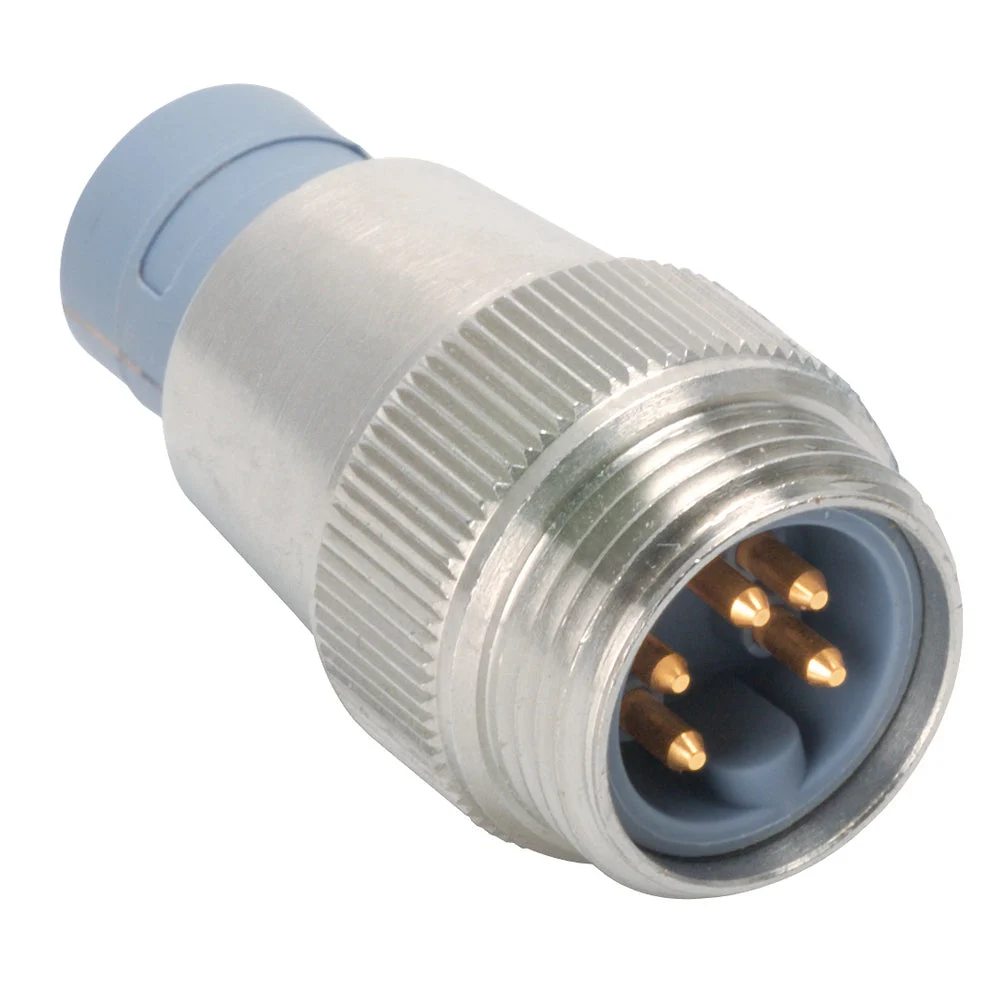

Termination Resistors are required on a NMEA 2000 network and are placed at each end of a network trunk cable. Termination resistors are waterproof. Prevents signal reflection. Screw connector for positive connection.
Termination Resistors are required on a NMEA 2000 network and are placed at each end of a network trunk cable. Like the double-ended cordsets, the termination resistors are waterproof and continue to function even while submerged in the bilge.
Terminating resistors are required on the NMEA 2000 network and placed at both ends of the network trunk. Like a double-ended wire set, the termination resistance is…
- Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
- Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
- Contact Mat/Plating: Brass/Gold
- Coupling Nut Mat/Plating: Brass/Nickel
ELECTRICAL:
- Rated Voltage: 300 V DC
- Internal Resistor: 120 Ohms (1/2 W)
ENVIRONMENTAL:
- Protection Class: IEC IP67, NEMA 1,3,4,6, 13
- Temperature Rating: -40°C to 80°C (-40°F to 176°F)
APPROVALS:
- NMEA: NMEA 2000 Approved
- IEC: IEC 61162-3
SKU: NVN-31818
MPN: TR-NM
UPC: 786788831370
