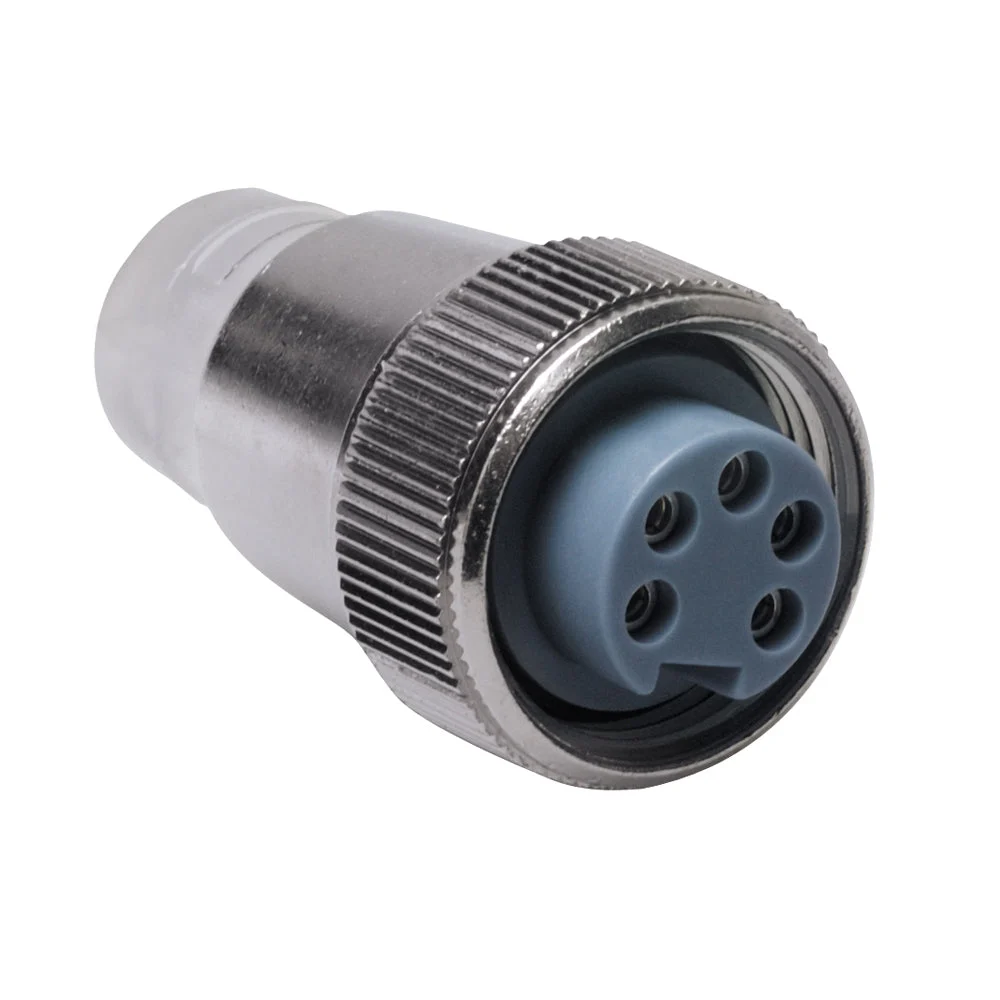

Description
Same as Mini Termination Resistors, but Diagnostic versions indicate, via LED, correct polarity at a glance to ensure power connections have been made properly. Prevents signal reflection.
Maretron TRLNF Attributes
Termination Resistors are required on a NMEA 2000 network and are placed at each end of a network trunk cable. Like the double-ended cordsets, the termination resistors are waterproof and continue to function even while submerged in the bilge.
This product is brand new, unopened and sealed in its original factory packaging. The NMEA2000 network needs to be terminated with resistors and placed at both ends of the network trunk.
- Molded Body Mat/Color: Thermoplastic PUR/Clear
- Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
- Contact Mat/Plating: Brass/Gold
- Coupling Nut Mat/Plating: Brass/Nickel
ELECTRICAL:
- Rated Voltage: 300 V DC
- Internal Resistor: 120 Ohms (1/2 W)
- Voltage Monitoring (Bus Power): Green-Correct Polarity, Red-Reversed Polarity
ENVIRONMENTAL:
- Protection Class: IEC IP67, NEMA 1,3,4,6, 13
- Temperature Rating: -40°C to 80°C (-40°F to 176°F)
APPROVALS:
- NMEA: NMEA 2000 Approved
- IEC: IEC 61162-3
SKU: NVN-31821
MPN: TRL-NF
UPC: 873804002378
