Description

Maretron Fluid Pressure Sensor Transducers work with the Maretron FMP100 which will adapt up to six pressure Transducers to the NMEA 2000 network

Maretron PT015PSI01 Attributes

Maretron PT015PSI01 Technical Bulletins

• FPM100 Datasheet.pdf

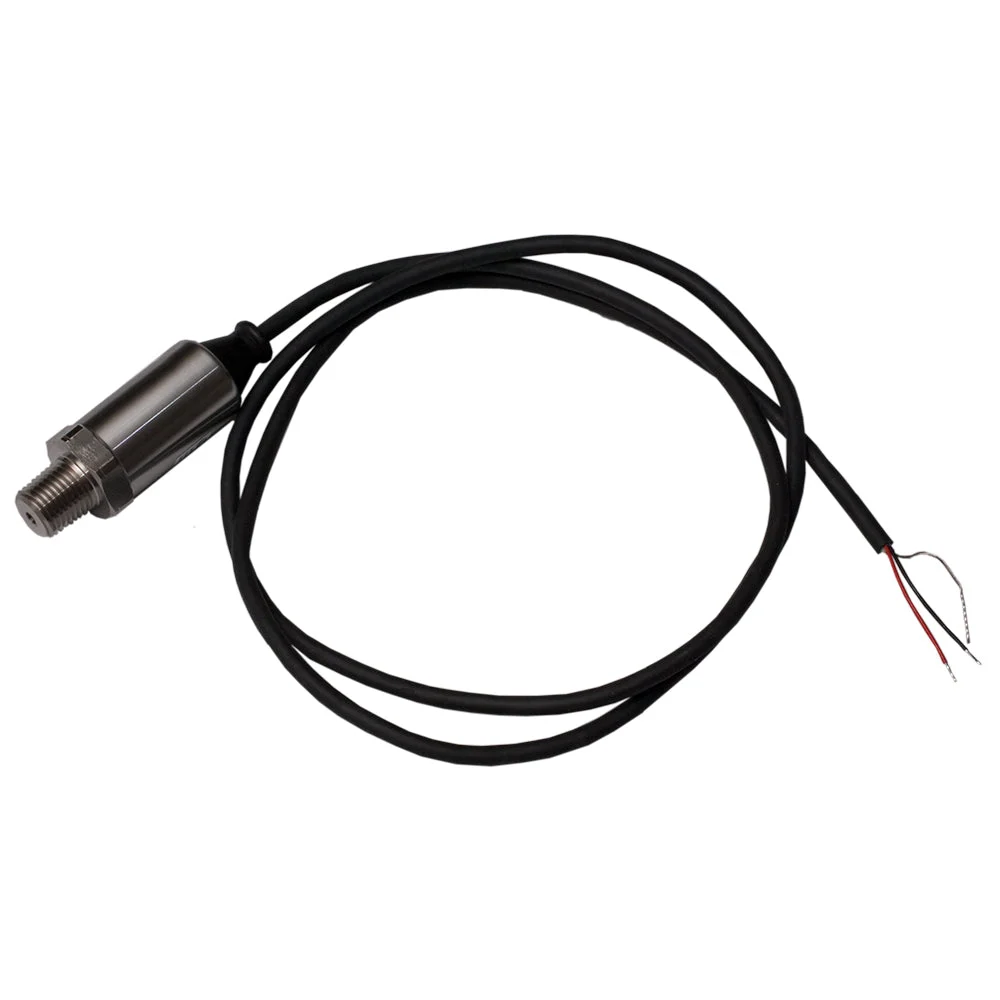

Pressure Transducer 0 to 1.5 PSI
For use with FPM100 Fluid Pressure Monitor

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Pressure sensor 0 to 1.5 PSI used with FPM100 fluid pressure monitor. Warning: This product can expose you to known chemical substances, including nickel (METALLIC)…

Compatible Fluids / Gases:

• Refrigerant
• Motor Oil
• Diesel
• Hydraulic Fluid
• Brake Fluid
• Water
• Waste Water
• Hydrogen
• Nitrogen
• Air

Operating Temperature:

• -5°C to 60°C

Media Temperature:

• -25°C to 125°C

Over Pressure Max:

• 29 PSI (2 bar)

Construction:

• 1.4305 (303 Stainless Steel), Thick Film on Ceramic Al2O3 (96 %) Sensor, FKM 70 Sh O-Ring

Cable:

• IP67, PVC (cable gland PA6-3)

Cable Length:

• 4.9 feet (1.5m)

Vibration:

• 4g (10 – 2000 Hz)

Shock:

• 50 g/8 ms

EMC Compatibility:

• EN 61000-6-3
• EN 61000-6-2

Humidity Max:

• 95% relative

Weight:

• 110g

SKU: NVN-61687
MPN: PT-0-1.5PSI-01
UPC: 873804003740
