Description

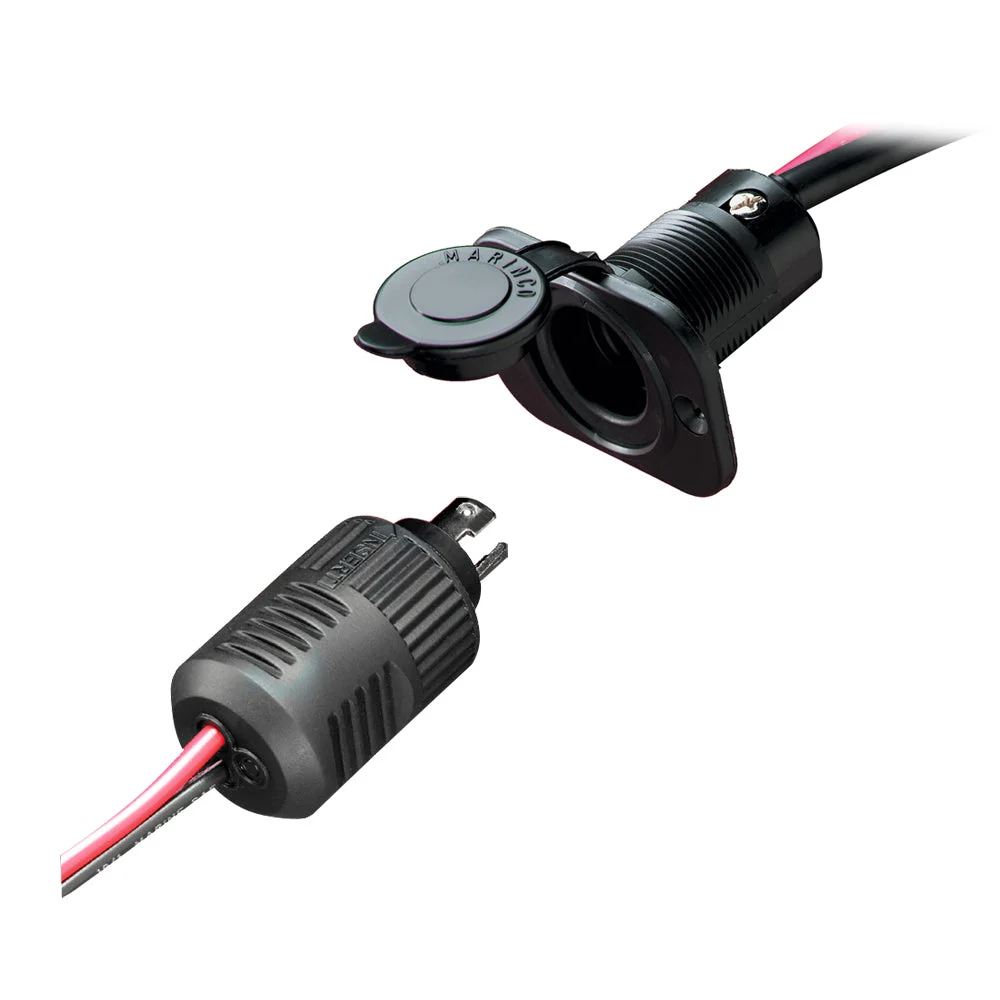

2-wire ConnectProTM Charging / Trolling System / Downrigger
ConnectPro® Receptacle

• Works with 12, 24, or 36 volt 2-wire systems
• For front mount panel installations
• Weather resistant sealing cap
• Drain holes in receptacle keep water away from electrical components
• Perma-Lock™ screw terminals will not loosen under extreme hull vibration
• Fits standard 1-1/8″ diameter mounting hole
• Accepts up to 10 gauge wire

ConnectPro® Plug

• O-ring seal for waterproof connections
• Weather resistant plug cover
• Corrosion resistant, plated brass electrical components
• Accepts 16 to 8 gauge wire
• Ergonomic contoured grip for easy hook-up and ground blade alignment
• Max. rating is 40A

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The ConnectPro tow motor plug and socket system is a revolutionary concept in the DC connection of tow motors. Excellent current carrying capacity of the battery
SKU: NVN-49264
MPN: 12VCPS2
UPC: 093344311451
