Description

The ConnectPro trolling motor plug and receptacle system is a revolutionary concept in trolling motor DC connections. The superior electric current carrying capacity of the ConnectPro system eliminates problems that rob motors of power and reduce battery life. The ConnectPro system also features a locking plug and receptacle with a spring clamping connection that provides a secure electrical contact.

Marinco 12VBR Attributes

• Type: Receptacle
• Voltage Rating: 12 Volt/ 24 Volt/ 36 Volt
• Ampere Rating: 40 Amp
• Color: Black
• Weatherproof: Yes
• With Perma-Lock Screw Terminals: Yes
• With Mounting Plate: Yes

Marinco 12VBR Features & Benefits

• Universal Design For 2 Or 3-Wire Configuration
• Watertight Sealing Cap
• Corrosion Resistant, Plated Brass Electrical Components
• Easily Replaces Other Trolling Motor Plugs And Receptacles
• Easy To Install, With Supplied Mounting Plate For Front Panel Installation
• Limited 5 Year Warranty

Marinco 12VBR Technical Bulletins

• 12VBR_SPEC.pdf

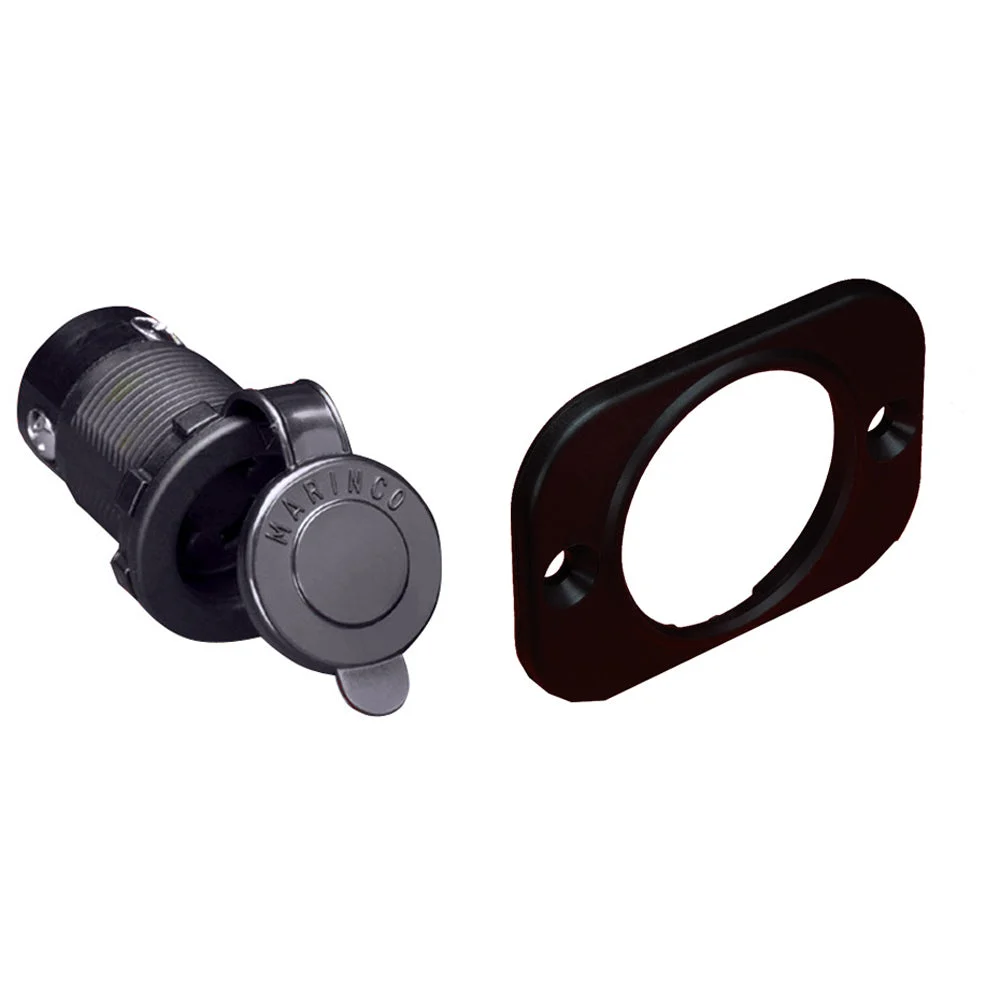

ConnectPro® 3-Wire Receptacle
Features:

• Universal design for 2 or 3-wire configuration 12, 24, 12/24, 24/36 or 36 volt systems
• Watertight sealing cap
• Corrosion resistant, plated brass electrical components
• Drain holes in receptacle keep water away from electrical components
• Perma-Lock screw terminals will not loosen under extreme hull vibrations
• Standard 1-1/8″ diameter mounting hole
• Easy to install, with supplied mounting plate for front panel installation, or locking ring for rear access installation
• Accepts 10 and 8 gauge wire
• Easily replaces other trolling motor plugs and receptacles

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Connect Pro tow motor plug and socket system is a revolutionary concept in the DC connection of tow motors. Excellent current carrying capacity of the battery
SKU: NVN-49229
MPN: 12VBR
UPC: 093344304651
