Description

The ConnectPro trolling motor plug and receptacle system is a revolutionary concept in trolling motor DC connections. The superior electric current carrying capacity of the ConnectPro system eliminates problems that rob motors of power and reduce battery life. The ConnectPro system also features a locking plug and receptacle with a spring clamping connection that provides a secure electrical contact.

Marinco 12VCP Attributes

• Type: Receptacle
• Voltage Rating: 12 Volt/ 24 Volt/ 36 Volt
• Ampere Rating: 40 Amp
• Color: Black
• Weatherproof: Yes
• With Perma-Lock Screw Terminals: Yes
• With Mounting Plate: Yes

Marinco 12VCP Features & Benefits

• Superior Electric Current Carrying Capacity Of The ConnectPro System Eliminates Problems That Rob Motors Of Power And Reduce Battery Life
• Features A Locking Plug And Receptacle With A Spring Clamping Connection That Provides A Secure Electrical Contact
• Corrosion Resistant
• Easy To Install
• Limited 5 Year Warranty

Marinco 12VCP Installation Instructions

• 12VCP_TCHDAT_wiring.pdf

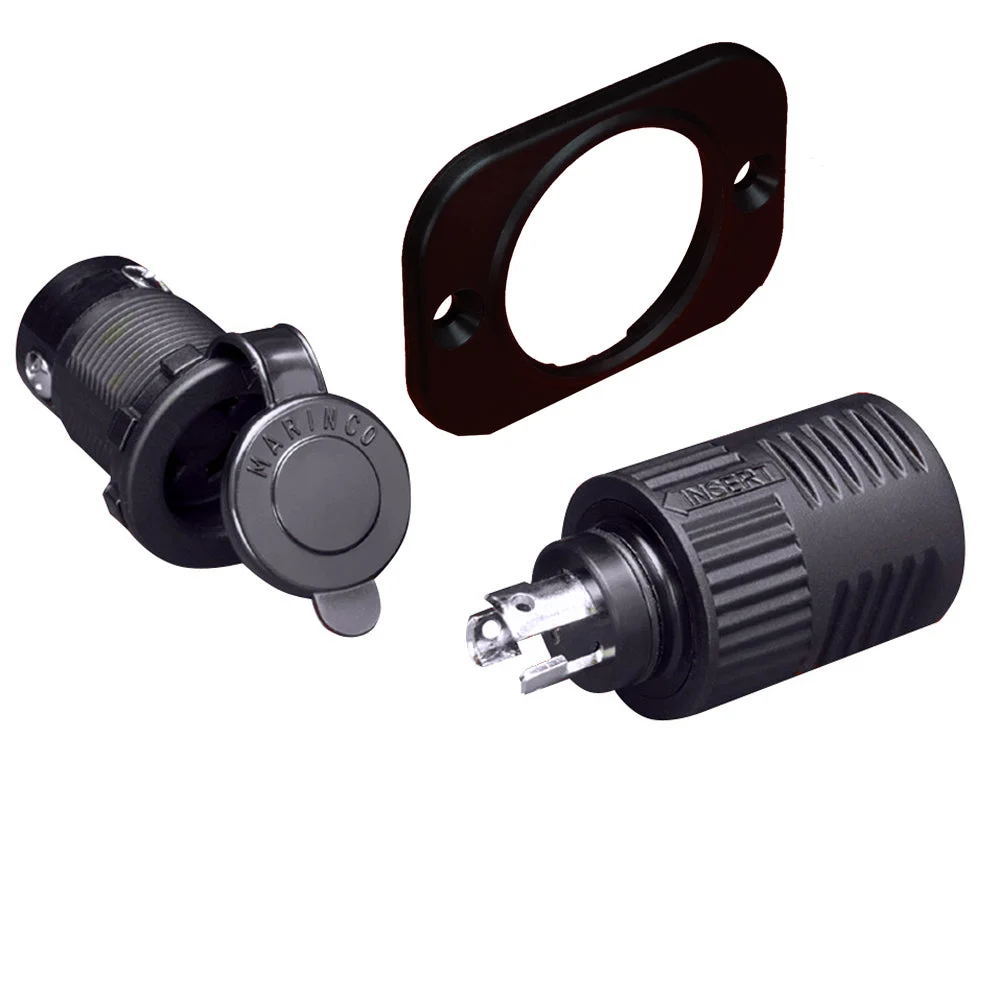

ConnectPro® Charging/Trolling System Receptacle & Plug
ConnectPro® Receptacle

• Universal design for 2 or 3-wire configuration 12, 24, 12/24, 24/36 or 36 volt systems
• Watertight sealing cap
• Corrosion resistant, plated brass electrical components
• Drain holes in receptacle keep water away from electrical components
• Perma-Lock™ screw terminals will not loosen under extreme hull vibration
• Standard 1-1/8″ diameter mounting hole
• Easy to install, with supplied mounting plate for front panel installation, or locking ring for rear access installation
• Accepts 10 and 8 gauge wire
• Easily replaces other trolling motor plugs and receptacles

ConnectPro® Plug

• O-ring seal for waterproof connections
• Weather resistant plug cover
• Corrosion resistant, plated brass electrical components
• Accepts 16 to 8 gauge wire
• Ergonomic contoured grip for easy hook-up and ground blade alignment

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The plastic socket and the plug are used for a firm connection, and the socket has a spring clamp connection for firm electrical contact. Its soft covering prevents dust and dust from entering.
SKU: NVN-49220
MPN: 12VCP
UPC: 093344304668
