Description

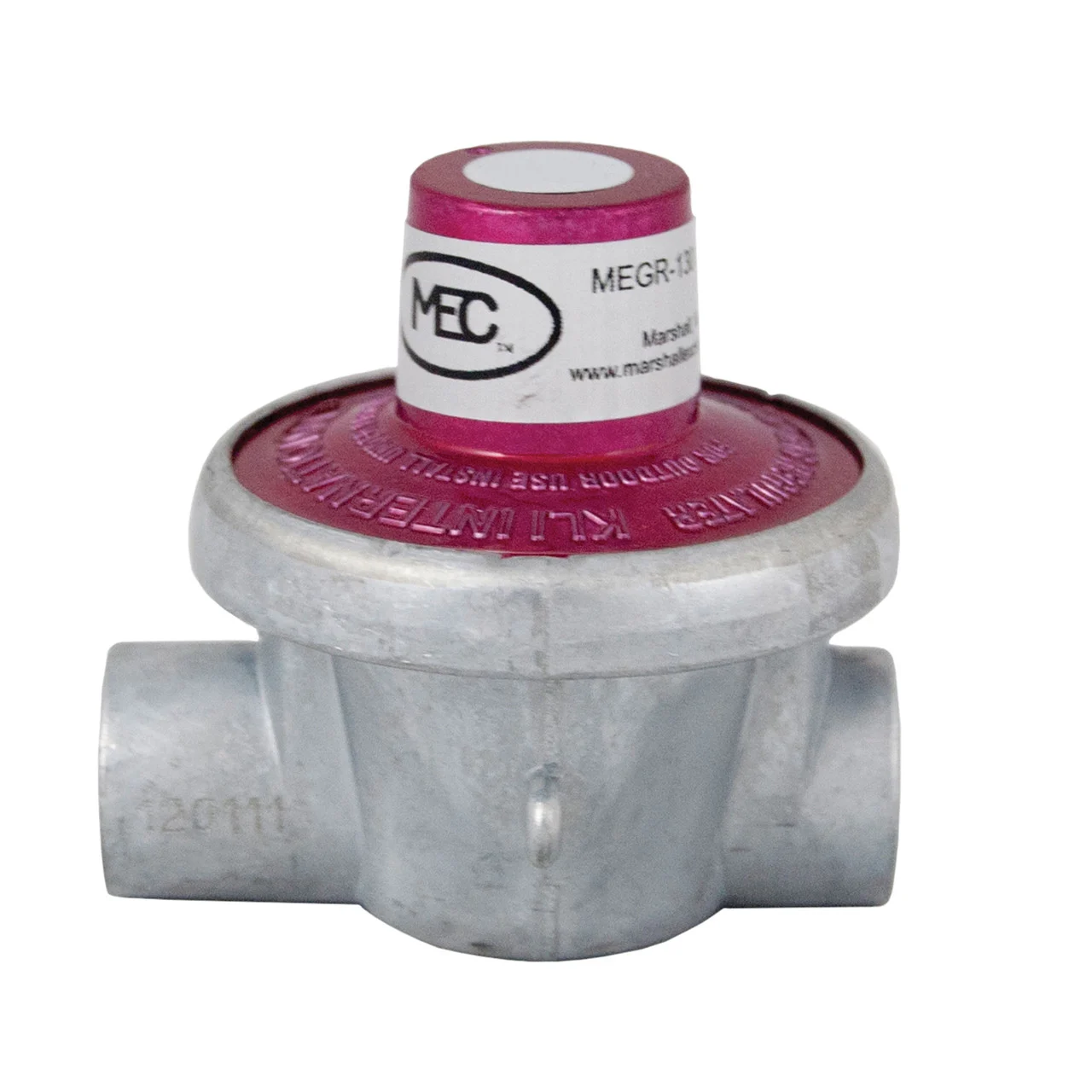

The MEGR-130 series fixed high pressure single stage regulators are designed to provide an economical solution for pounds to pounds service applications. The MEGR-130 can be used to regulate air as well as LP gas. MEGR-130-30/ MEGR-130-30A model is designed for high pressure RV applications. This regulator is ideal for 5th wheel split cylinder applications. The MEGR-350 is a single stage, adjustable high pressure regulator. The body and bonnet of both the fixed and adjustable regulators are precisely machined and feature a crimped design and fabric reinforced rubber diaphragm creating a positive seal for leak-free performance. Note: Regulators must be installed in compliance with federal, state or local codes or laws in accordance with NFPA 58.
Type: Fixed, 10 PSI
Max. Inlet Pressure: 250 PSIG (17, 2 bar)
Inlet Connection: 1/4 inch FNPT
Outlet Connection: 1/4 inch FNPT
Orifice Diameter: 0.0625 inch
