Description

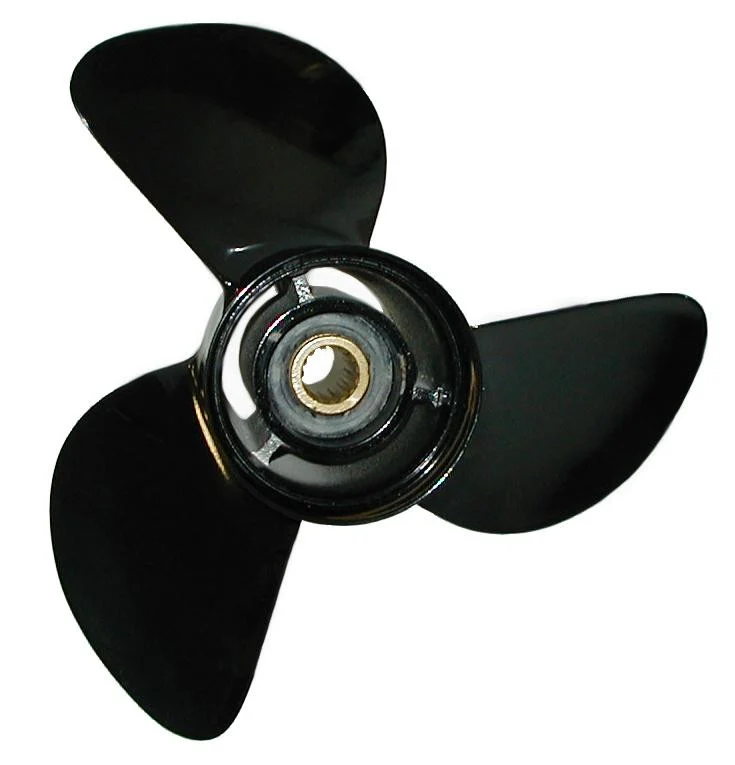

Michigan wheel model number 101031 with a NAVAL brass spindle and a rubber-cushioned hub that absorbs impact and Shifting gears causes a lot of tension. It improved powder coating and beefier bushing. This propeller replaces OEM Yamaha Semi-Cleaver Blade Geometry and Yamaha® “K” Series Propellers. It was made from aluminum and weighed about 8.00 lbs. Typically rotates in the right-hand direction with the help of 3 blades. Ski boats, inflatables, workboats, offshore singles, aluminum consoles, walleye boats, pontoons, family cruisers, and houseboats are all recommended boat applications. Warning: This product may contain materials that are prohibited by California Proposition 65.

Key Features:

• Replaces OEM Yamaha Semi-Cleaver Blade Geometry and Yamaha® “K” Series Propellers
• Rotates in the right-hand direction with the help of 3 blades.

Specifications:

• Brand: Michigan Wheel
• SKU: 101031
• Weight: 8.00 lbs
• Material: Aluminum
• Pitch: 13
• Number of Blades: 3
• Item Color: Black
• Diameter: 13-5/8
• Number of Splines: 15 Tooth Spline

22′-25′ All Load

OEM-equivalent blade geometry.

Engine Application

Yamaha® 50-130 Horsepower 41/4″ Gearcase

T50 hp 1996 & newer;
T60 hp 2003 & newer;
60 hp (Includes C60/E60/P60) 1992-2005;
F70 (4-Stroke) 2010 & newer;
70 hp 1984 & newer;
F75 (4-Stroke) 2003 & newer;
5 hp (Includes C75/E75/P75) 1994-99;
80 hp 1997;
F80 (4-Stroke) 1999-2002;
85 hp 1991-97;
F90 (4-Stroke) 1999 & newer;
90 hp (Includes C90) 1984 & newer, F100 (4-Stoke) 1999-2002;
F115 hp (4-Stoke) 2000 & newer;
115 hp (Includes C115/P115) 1984 & newer;
130 hp 1984-2003

Attaching Hardware:H68/H69

Attaching Hardware

H68/H69

H68

Flat washer:
Quicksilver: 859907
Nut (castle):
Sierra: 18-3732
Quicksilver: NLA
Spacer washer (aft, splined):
Sierra: 18-4274
Spacer, washer, nut & pin kit:
Sierra: 18-3781
Michigan Wheel: 990766
Thrust washer (forward):
Michigan Wheel: 990769

H69

Cotter pin (10/pack):
Sierra: 18-3735
Flat washer:
Sierra: NLA
Quicksilver: 887972
Nut:
Sierra: 18-3726
Spacer washer (aft):
Sierra: 18-4274
Spacer, washer, nut & pin kit:
Sierra: 18-3782
Thrust washer (forward):
Sierra: 18-73918
Michigan Wheel: 990770

This product replaces:

6E5-45949-00-00, 14984006767
