Description

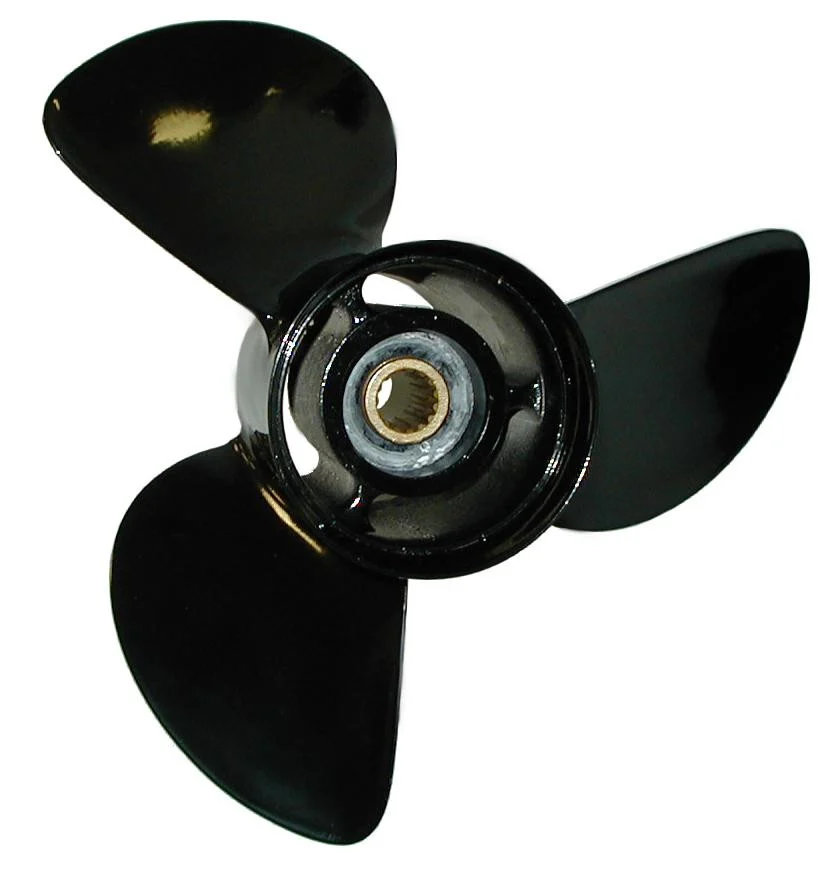

The 14 X 19 A3R PROP (101028) is a high-end aluminum three-blade right-hand Michigan match-through exhaust propeller. A propeller of great quality and performance. Produces robust blades with exceptional acceleration and performance using a proprietary squeeze cast method. The NAVAL brass spindle’s rubber-cushioned hub reduces shock.

Key Features:

• Top-quality Aluminium Three Blade Right Hand Propeller
• Features a NAVAL brass spindle that absorbs impact.
• Powder coating has improved, and the bushing has upgraded.
• Perfect aluminum propeller replacements
• 100% Brand new and made with the Top Quality Materials in the Industry with zero fault production
• Stylish design, excellent performance quality, durability, and high reliability
• Proven and verified for exceptional dependability throughout the manufacturing process to ensure it meets our standards for quality.
• High-quality materials and precise manufacture

Specifications:

• Brand: Michigan Wheel Marine
• Condition: Brand New
• Item Number: 101028
• Weight: 6.00 LBS
• Material: Aluminum
• Blade Quantity: 3
• Diameter: 14
• Pitch: 19
• Spline: 15
• Rotation: Right (R)
• Engine Application: Yamaha 150-300 Horsepower 43/4″ Gearcase, Yamaha Sterndrives 43/4″ Gearcase
• Attaching Hardware: H69

Note: This product replaces:

• 6G5-45945-01-98, 6G5-45945-01-00, 3511-145-19, 201019, 14984006743
• Yamaha “M” or “T” Series Propellers

17′-21′ (33-42 mph)

Engine Application

Yamaha® 150-300 Horsepower 43/4″ Gearcase

150 hp 1986 & newer;
F150 hp (4-Stroke) 2004 & newer;
175 hp 1984 & newer;
F175 (4-Stroke) 2014 & newer;
200 hp 1984 & newer;
200 hp (VMAX®) 2001;
F200 (4-Stroke) 2002 & newer;
VF200 (VMAX® SHO) 2010 & newer;
220 hp (Special) 1984-85;
225 hp (Excel) 1987-88;
225 hp 1986 & newer;
F225 (4-Stroke) 2002 & newer;
VF225 (VMAK® SHO) 2010 & newer;
F225 (Offshore) 2010 & newer;
250 hp 1990 & newer;
250 hp (VMAX®) 2001;
F250 (4-Stroke) 2002 & newer;
VF250 (VMAX® SHO) 2010 & newer;
F250 (Offshore) 2010 & newer;
300 hp 2004-2007;
F300 (Offshore) 2010 & newer *For engines 300 hp or higher, use “High Horsepower Sleeve” (P/N 991372)

Attaching Hardware:H69

Yamaha® Sterndrives 43/4″ Gearcase

3 L (130 hp) (EST/PSR) 1989-93;
4.3 L (205 hp) (EST/PSR/YEMS) 1989-93;
5.0 L (205 hp) (EST/ PSR/YEMS) 1989-93;
5.7 L (260 hp) (EST/PSR/YEMS) 1989-93;
*7.4 L (300 hp) (Hydra Drive EST) 1992-93 *For engines 300 HP or higher, use “High Horsepower Sleeve” (P/N 991372).

Attaching Hardware:H69

Attaching Hardware

H69

Cotter pin (10/pack):
Sierra: 18-3735
Flat washer:
Sierra: NLA
Quicksilver: 887972
Nut:
Sierra: 18-3726
Spacer washer (aft):
Sierra: 18-4274
Spacer, washer, nut & pin kit:
Sierra: 18-3782
Thrust washer (forward):
Sierra: 18-73918
Michigan Wheel: 990770

This product replaces:

6G5-45945-01-98, 6G5-45945-01-00, 3511-145-19, 201019, 14984006743
