Description

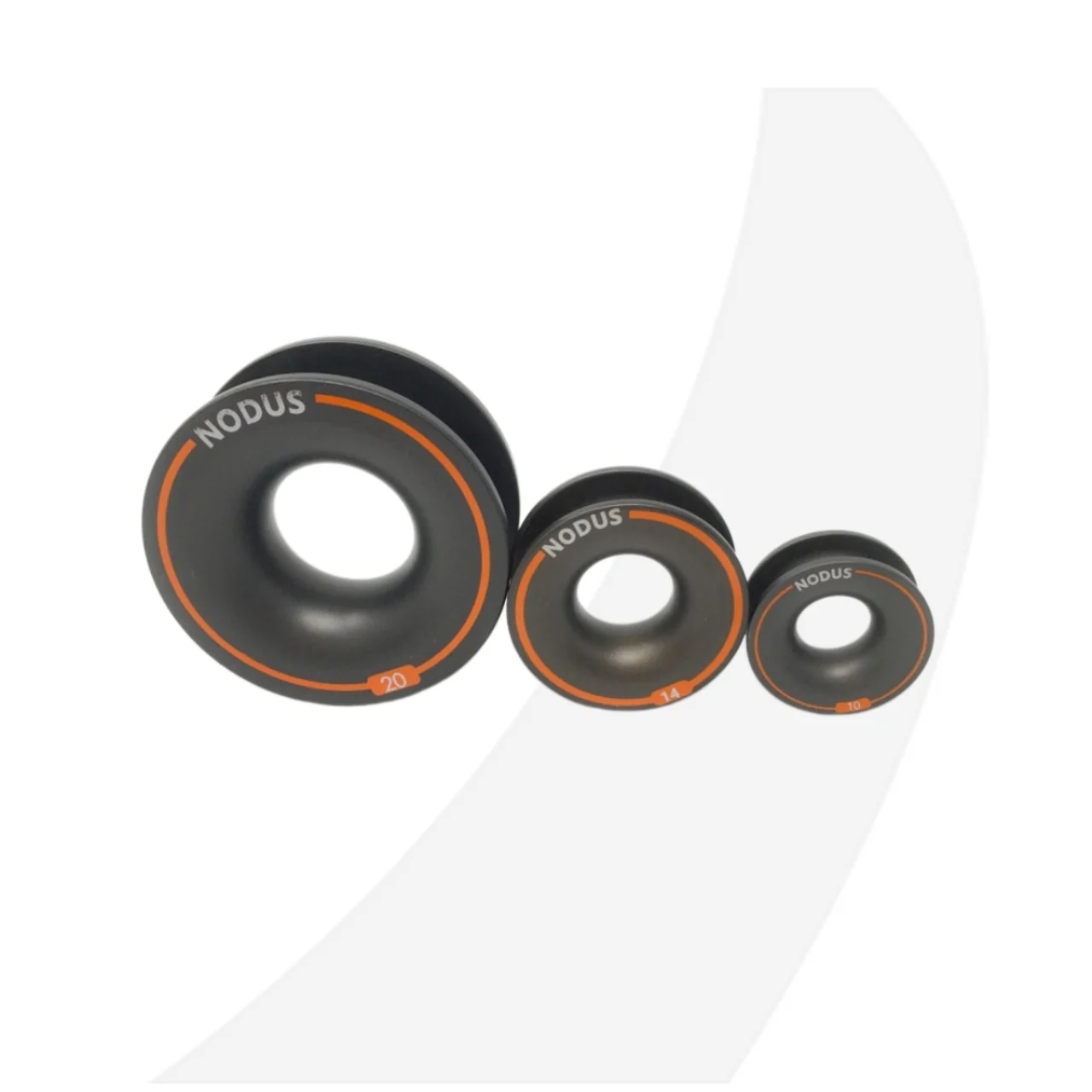

Nodus Duralumin Friction ring
FrD® the Nodus Factory® friction ring is an hard anodized aluminium ring with a super slippery Teflon coated surface. It is also very light, reliable and resistant. The Nodus friction ring is used in numerous applications and for all types of rope.
|
Technical Description |
|||||||
|
Product Name |
Breaking Load KG |
Ø A mm | Ø B mm | Ø C mm | Ø D |
Ø Rope Recommended mm |
Weight gr |
| Duralumin FrD 10 | 1500 | 7 | 12 | 12 | 30 | 4/8 | 8 |
| Duralumin FrD 14 | 1800 | 11 | 16 | 16 | 40 | 6/10 | 16 |
| Duralumin FrD 25 | 3400 | 16 | 24 | 17 | 60 | 12/18 | 80 |
