Description

Parker’s economical Compress-Align fittings are pre-assembled with a captive sleeve which is always oriented correctly for faster assembly. The captive sleeve gives a visible inspection before and after installation and the design of the sleeve aligns to seal even out-of round tubing. Compress-Align can be used in many areas where flare fittings are used due to the higher pressure rating, meaning no flaring, soldering or tube preparation resulting in faster installation. Compress-Align bodies are interchangeable with standard compression bodies so inventory is decreased. Use with copper, aluminum and the following Parker Parflex Division tubing: Polyethylene, Nylon, Polypropylene, PTFE, FEP, and PFA.

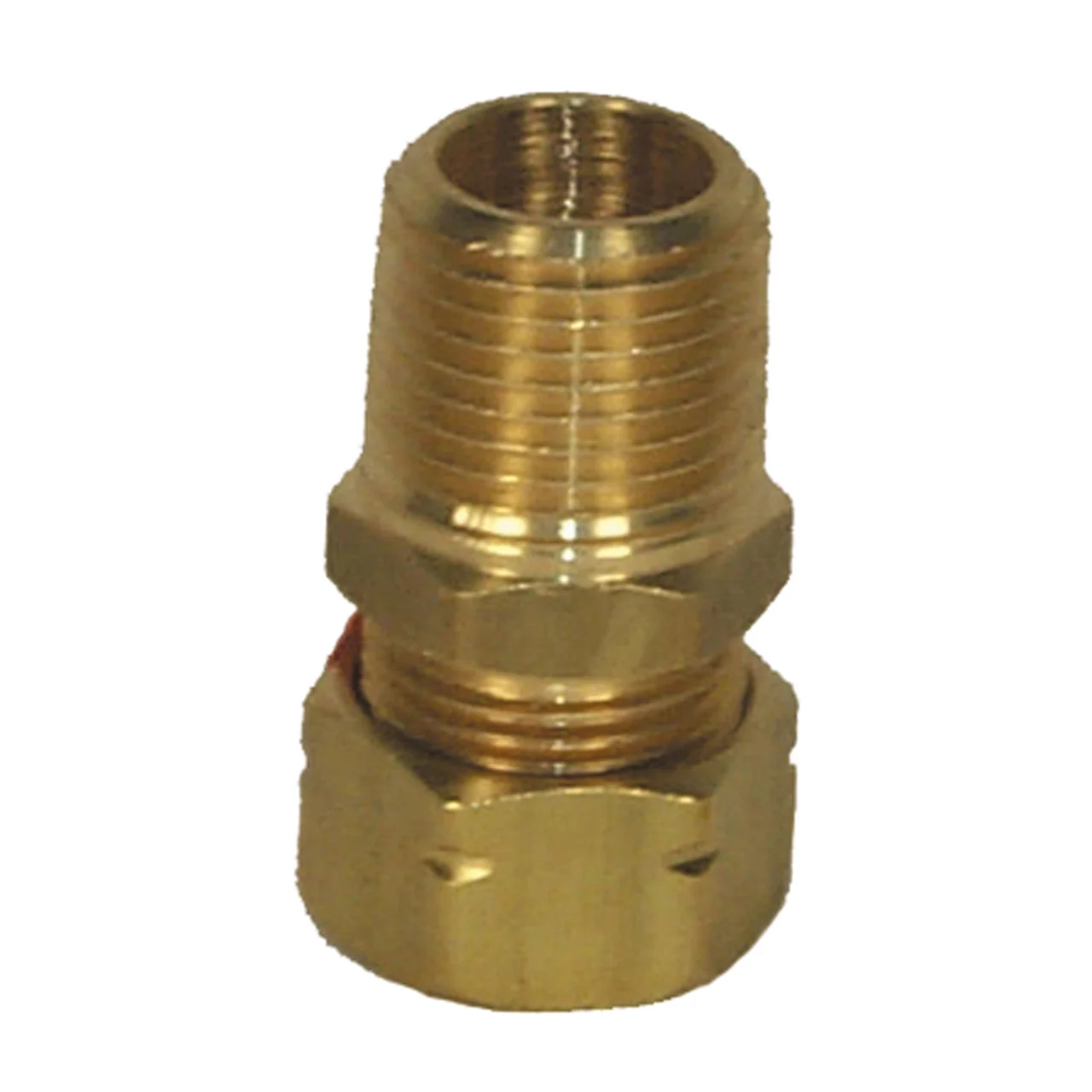

Connector Fitting
Style: Tube to Male Pipe
Connection 1 Tube O.D.: 5/8″
Connection 2 Thread Size: 1/2″ MPT
Maximum Operating Pressure: 2800 PSI (193 Bar)
