Description

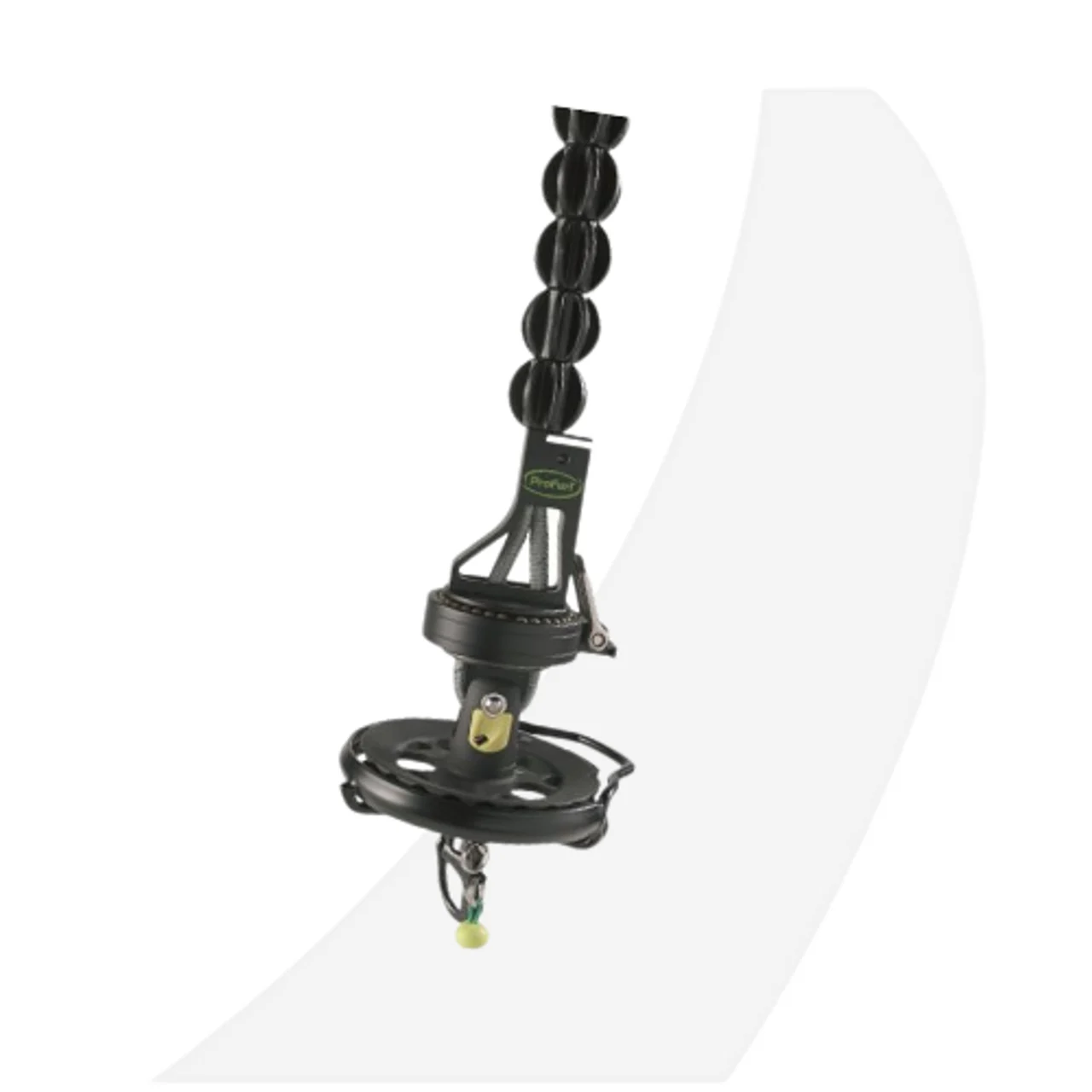

Profurl Spinex 2.5 Top down spinnaker furler

The Spinex is designed to furl flying sails with a loose luff, such as asymmetrical spinnakers.

Technical Description
Mod.	Spinex 0.9	Spinex 1.5	Spinex 2.5	Spinex 4.0	Spinex 6.5	Spinex 8.0
A mm	113.80	120.70	154	180.7	225.40	–
B mm	63.30	80.20	100.30	122.70	146.10	160
C mm	80	87	93	103	126	126
D mm	31.50	35	40	47.1	55.40	56.40
E mm	127.50	139.50	151.50	163.00	209	216.00
F mm	34	37	42	47	53	60
G mm	19	21	25.50	28.5	33	33
H mm	8.30	8.30	10.30	12.30	14.30	14.30
I mm	10	10	12	14	17	18
spool: mm	120	150	180	220	220	250
furling line: mm	8	8	8 – 10	8 – 10	10	10
anti-torque cable mm	9	11	13	15	17	19
Weight: swivel tack point, lower thimble Kg	0.490	0.620	0.830	1.060	1.870	1.880
Weight: upper thimble Kg	0.120	0.170	0.245	0.310	0.580	0.590
Weight: cable & sleeve per meter (Kg / m)	0.160	0.210	0.275	0.345	0.420	0.500
