Description

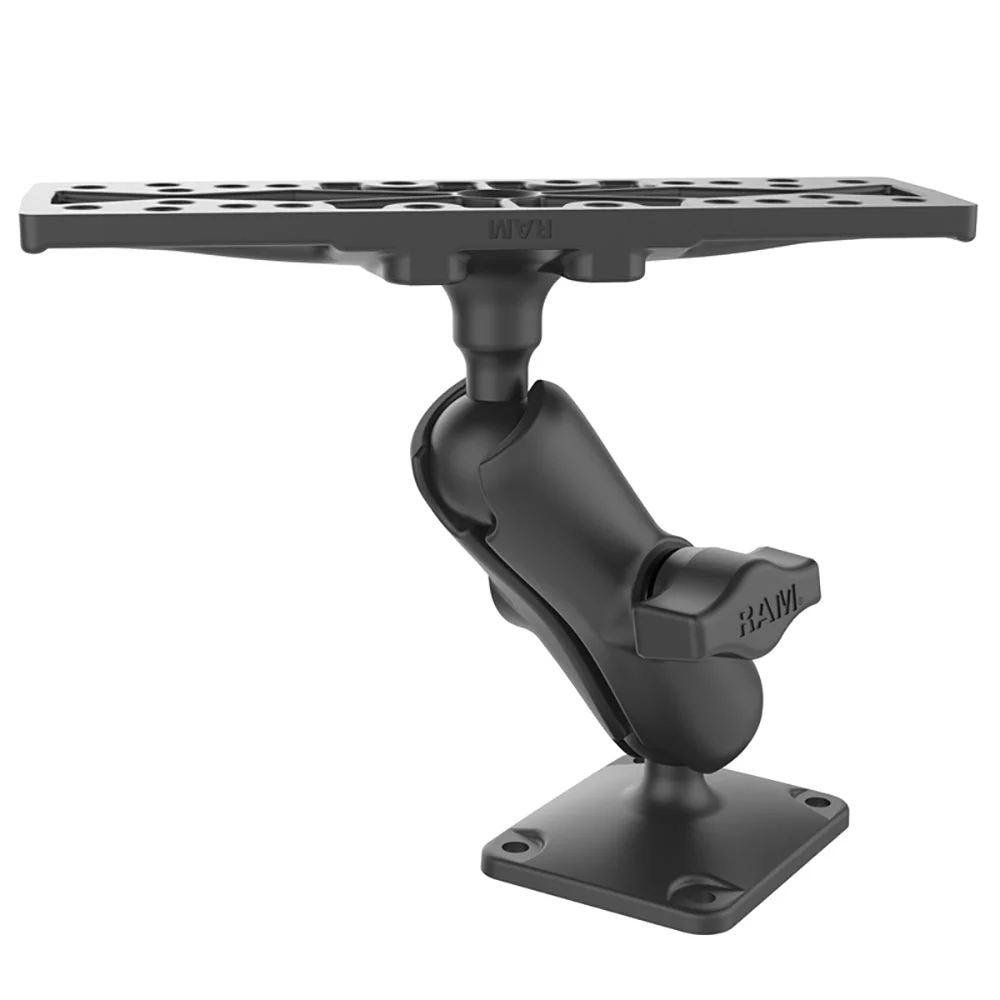

RAM® Composite Universal Marine Electronic Mount

The RAP-B-111U consists of a 2″ x 2.5″ rectangle base, STANDARD length double socket arm and 6.25″ x 2″ rectangle plate. The rectangle base contains pre-drilled holes, including the universal AMPS hole pattern. The 6.25″ x 2″ rectangle plate contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.

Specifications:

• Overall Height: 5″
• Socket-to-Socket Length: 3″
• Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″
• Plate Size: Top Plate: 6.25″ x 2″, Bottom Plate: 2″ x 2.25″
• Ball/Socket Size: B Size (1″)
• Weight Capacity: 2lbs
• Materials: High Strength Composite

The attached board is a universal mounting bracket with selected mounting hole positions. In some applications, it may be necessary to drill some extra holes to ensure a proper fit…
SKU: NVN-86282
MPN: RAP-B-111U
UPC: 793442911897
