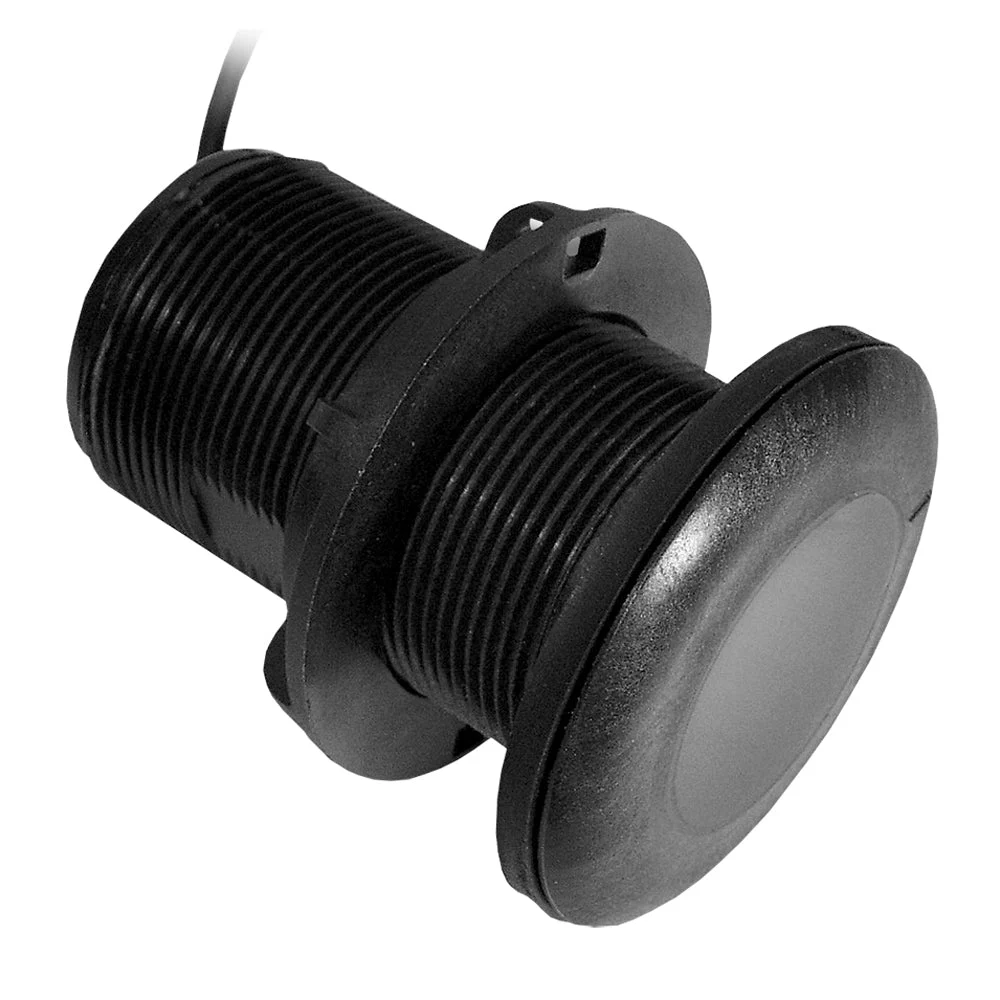

Raymarine M78713-PZ P19 Lexan Depth Transducer – Low-Profile Through-Hull for ST60 & ST290 Marine Instruments

Achieve precise depth readings with minimal hull intrusion using the Raymarine M78713-PZ P19 Lexan Depth Transducer, engineered for seamless integration with ST60, ST290, and compatible marine instrumentation. This professional-grade through-hull transducer features ultra-low-profile design extending just 5mm (3/16″) below the hull surface, virtually eliminating drag while delivering accurate 200 kHz depth sensing for navigation safety and fishing applications.

Model NumberM78713-PZUPC723193661000

Low-Profile Marine Depth Sensing Technology

• Ultra-Low-Profile Design: Nearly flush-mount housing extends only 5mm (3/16″) below hull surface, minimizing drag and turbulence for optimal vessel performance
• High-Frequency Precision: 200 kHz operating frequency provides accurate depth readings and detailed bottom composition for navigation and fishing applications
• Lexan Construction Excellence: Durable plastic housing withstands marine environments while providing cost-effective performance for recreational and commercial vessels
• Built-in Deadrise Compensation: Tilted ceramic element design accommodates deadrise angles from 0° to 8° for accurate readings on various hull configurations
• Universal Hull Compatibility: Designed for both aluminum/metal and fiberglass hulls with professional 2-inch through-hull installation
• Extended Cable Run: 45-foot marine-grade cable with spade connectors provides installation flexibility for various vessel layouts

Technical Specifications

Frequency:	200 kHz
Maximum Power:	250 Watts
Cable Length:	45 feet
Connector Type:	Spade Connectors
Installation Hole:	2 inches diameter
Hull Protrusion:	5mm (3/16 inch)
Deadrise Range:	0° to 8°
Hull Compatibility:	Aluminum, Metal, Fiberglass
Construction Material:	Lexan Plastic
Temperature Sensor:	No
Speed Sensor:	No

Instrument Compatibility Matrix

Instrument Model	Direct Compatibility	Additional Requirements
ST60+	Yes – Direct	None
ST290	Yes – Direct	None
i50	Yes – Direct	None
ST70	Compatible	Requires ST70 Depth Pod
i70	Compatible	Requires ITC-5 Converter

Professional Installation Advantages

The P19 design represents the optimal balance between performance and hull integrity. The ultra-low-profile configuration minimizes water flow disruption, making it ideal for high-performance vessels where speed and fuel efficiency are priorities. The nearly flush-mount design also reduces the risk of impact damage in shallow water or during hauling operations.

Installation Specifications: Requires a clean 2-inch diameter hole through the hull with appropriate marine sealant and backing plate. The built-in deadrise compensation eliminates the need for angled installation in most applications, simplifying the installation process while maintaining accuracy.

Marine Environment Performance

The Lexan plastic construction provides excellent durability and chemical resistance against marine growth, salt corrosion, and UV exposure. Unlike bronze through-hulls, the plastic construction eliminates galvanic corrosion concerns and provides consistent performance in all water conditions. The smooth surface finish resists marine growth accumulation that can affect transducer performance.

Navigation & Fishing Applications

The 200 kHz frequency provides excellent detail resolution for both navigation safety and fishing applications. Higher frequency operation delivers superior bottom detail and fish separation compared to lower frequency transducers, making it ideal for coastal cruising, sport fishing, and shallow water navigation where precise depth measurement is critical.

System Integration Benefits

Seamless integration with Raymarine’s SeaTalk network enables depth data sharing throughout the vessel’s instrumentation system. Multiple displays can simultaneously show depth information, while the data can be integrated with chartplotters, autopilots, and other navigation systems for comprehensive situational awareness.

What’s Included

• Raymarine M78713-PZ P19 Lexan Depth Transducer
• 45-Foot Marine-Grade Cable with Spade Connectors
• Through-Hull Installation Hardware
• Sealing Gaskets and O-Rings
• Installation Instructions and Wiring Diagram
• Manufacturer Limited Warranty

Maintenance & Longevity

The plastic construction requires minimal maintenance beyond periodic cleaning to remove marine growth. The smooth Lexan surface allows for easy cleaning without risk of scratching or damage. Regular inspection of cable connections and through-hull sealing ensures long-term reliability and performance.

Frequently Asked Questions

Which Raymarine instruments are compatible with the M78713-PZ?

The M78713-PZ is directly compatible with ST60+, ST290, and i50 instruments. It’s also compatible with ST70 (requires ST70 Depth Pod) and i70 (requires ITC-5 converter) with additional components.

What hull materials are compatible with this plastic transducer?

The P19 plastic transducer is compatible with aluminum, metal, and fiberglass hulls. The plastic construction eliminates galvanic corrosion concerns common with bronze transducers on aluminum hulls.

How much does this transducer protrude below the hull?

The ultra-low-profile design extends only 5mm (3/16 inch) below the hull surface, making it nearly flush-mounted. This minimal protrusion virtually eliminates drag and reduces the risk of impact damage.

What deadrise angles can this transducer accommodate?

The M78713-PZ accommodates deadrise angles from 0° to 8° through built-in deadrise compensation. The ceramic element is tilted inside the housing to provide accurate readings without angled installation requirements.

Does this depth transducer include temperature or speed sensing?

No, the M78713-PZ is a depth-only transducer operating at 200 kHz. It does not include temperature or speed sensing capabilities, focusing exclusively on precise depth measurement for navigation and fishing applications. Lexan Depth Transducer f/ST60 & ST290
P19 Plastic Low Profile Through Hull Transducer
Key Features

• Includes 45′ cable
• Frequency: 200 kHz
• Compatible hull material: metal & fiberglass
• Hole diameter for installation: 2″

Compatible models

• ST60+
• i50
• ST70 / i70 (requires ST70 depth pod or ITC5 – sold separately)

We love outdoor sports and know that having the best equipment is essential for any new adventure. Our selected collection focuses on top brands from the marine, leisure and outdoor markets…
SKU: NVN-13169
MPN: M78713-PZ
UPC: 723193661000
