Description

Features:

• Wave Design chainwheel provides superior holding power and less rope wear, see below

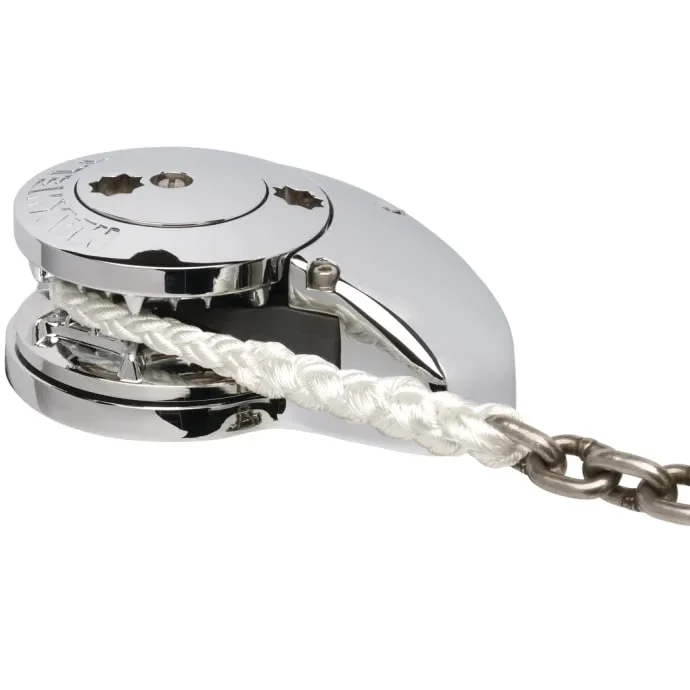

• RC10-10 will accommodate 3/8″ HT/BBB or 10mm short link marine chain spliced to 5/8″ three-strand or 8-plait rope
• Capstan models have a chromed bronze drum
• Simple 2-piece installation with no need to disassemble the windlass – saves time and money
• Easy maintenance accessibility
• Manual retrieval and cone clutch controlled “free fall” deployment option using emergency handle provided
• Top works manufactured from marine grade chromed bronze and stainless steel for outstanding saltwater durability
• Sealed oil bath and marine grade hard anodized aluminum alloy gearbox with precision worm drive for maximum power output
• Extra deck thickness kit is available by special order
• Dimensions on deck: 9-1/8″L x 6-3/4″W x 3-1/2″H; Capstan Models: 6-5/8″H
• As with all windlasses, use in conjunction with a chain stopper or snubber to take the load when lying at anchor
• 3-year limited warranty
• Note that G4, G40, G43, and High Test (HT) chains are equivalent for sizing purposes
