Description

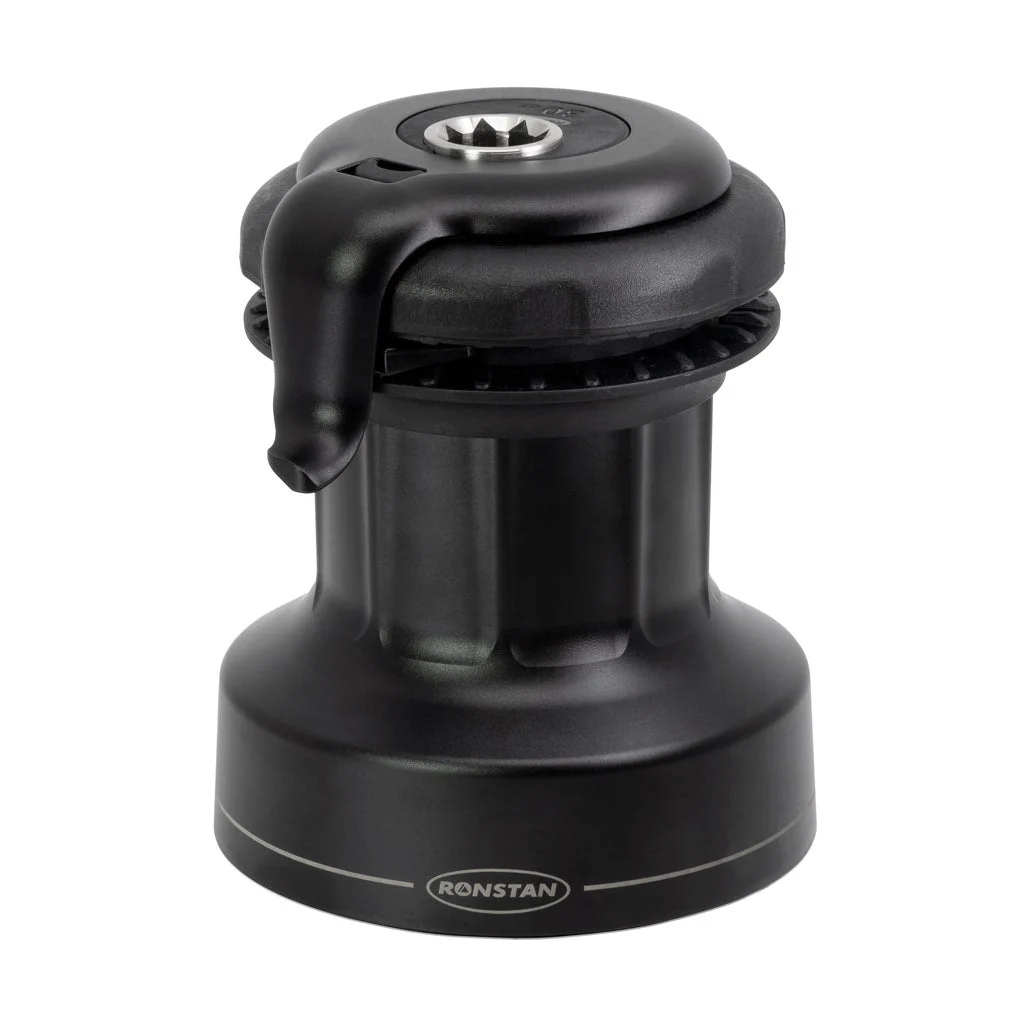

Ronstan 20ST Orbit Winch 1-Speed

Features:

• Sprung self-tailing jaws to accept 6 – 10mm line.
• Proven Andersen winch gearing configuration.
• Power Rib ensures a controlled grip on the line at all times, whether trimming or easing. Minimal rope wear compared to more abrasive drum surface finishes.
• No tools required for configuration and servicing.
• Machined aluminium drum – stronger and lighter than traditional cast aluminium drums.
• Aluminium centre stem, lighter weight compared to bronze stems.
• Low line entry due to gearing configuration geometry.

Specifications:

• Gear ratio 1st speed: 2.7:1
• Power ratio 1st speed: 18.3:1

Materials:

• Hard anodised aluminium drum and centre stem, aluminium self-tailing arm
• Grade 316 stainless steel shaft, axle pins, and pawls
• Aluminium bronze gears
• Glass-filled nylon self tailer
• Self-lubricating acetal bearings
